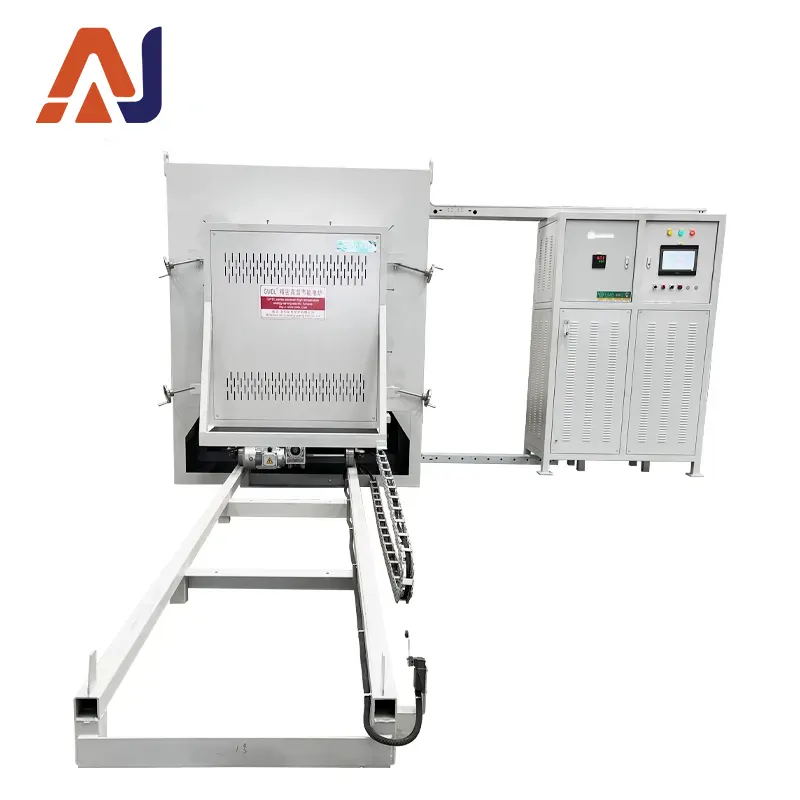

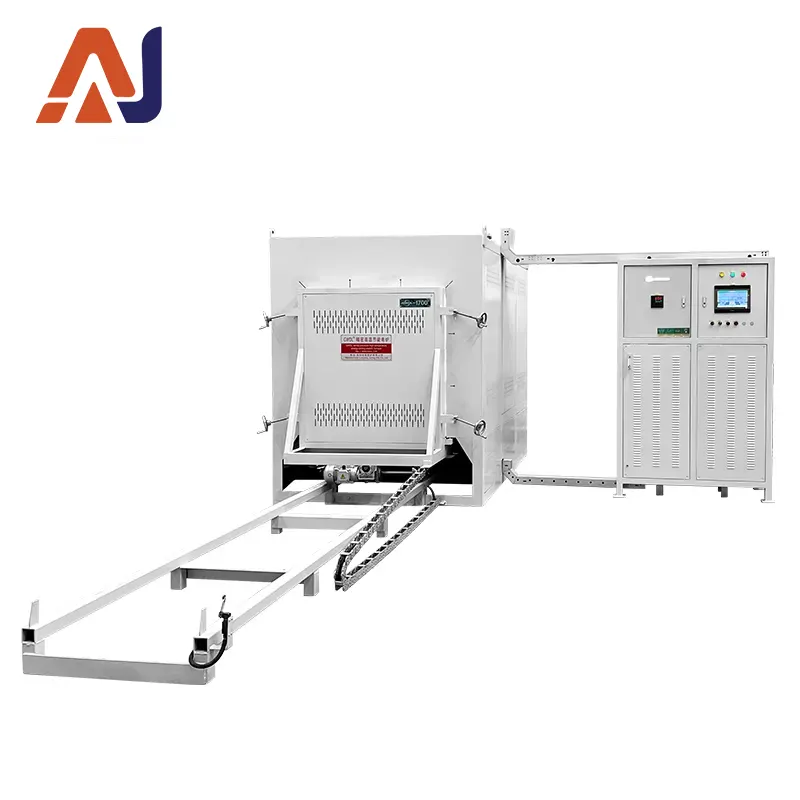

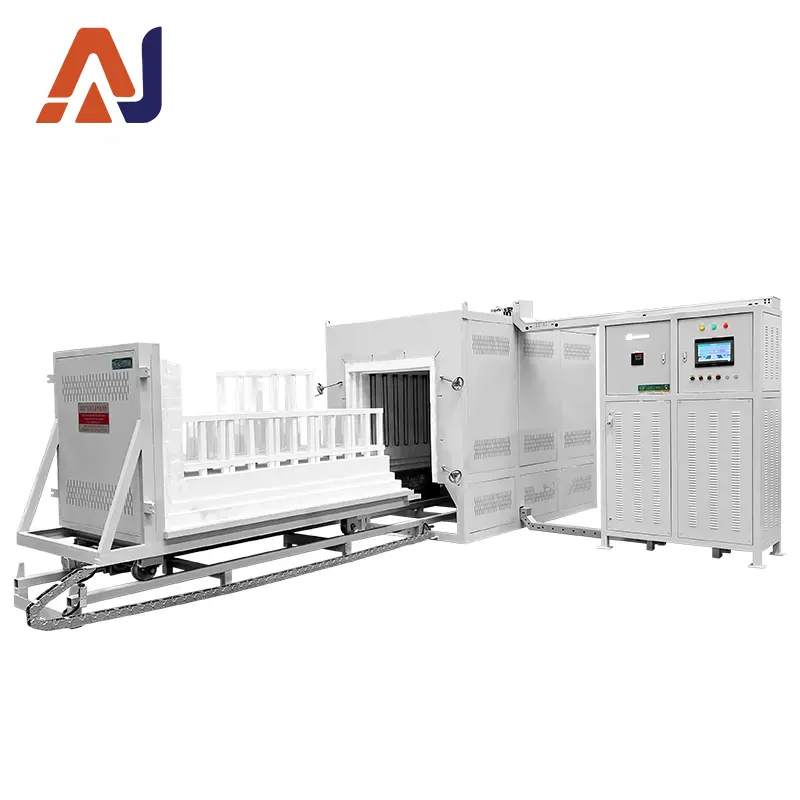

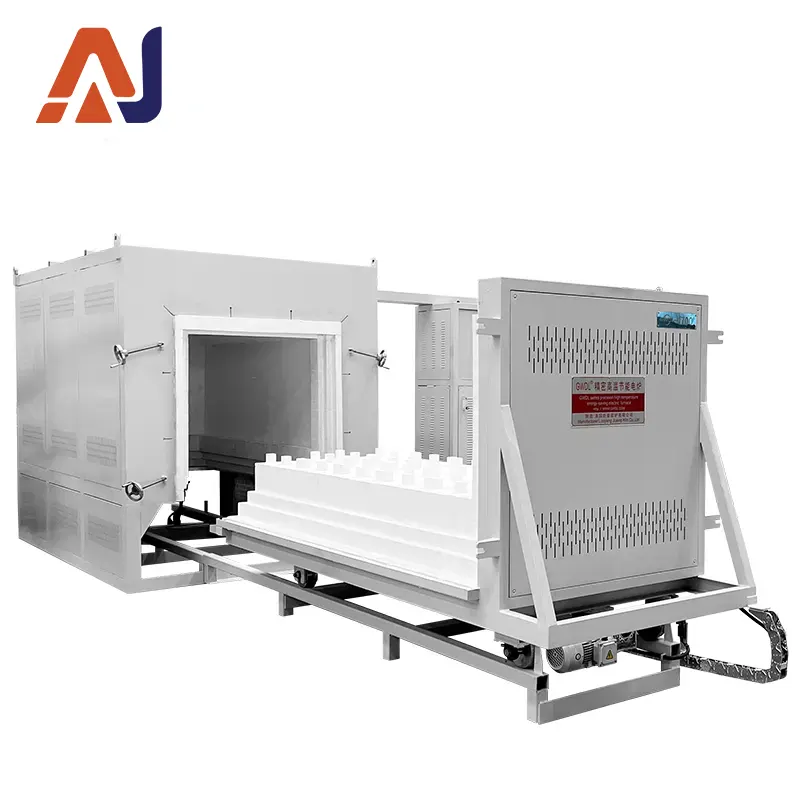

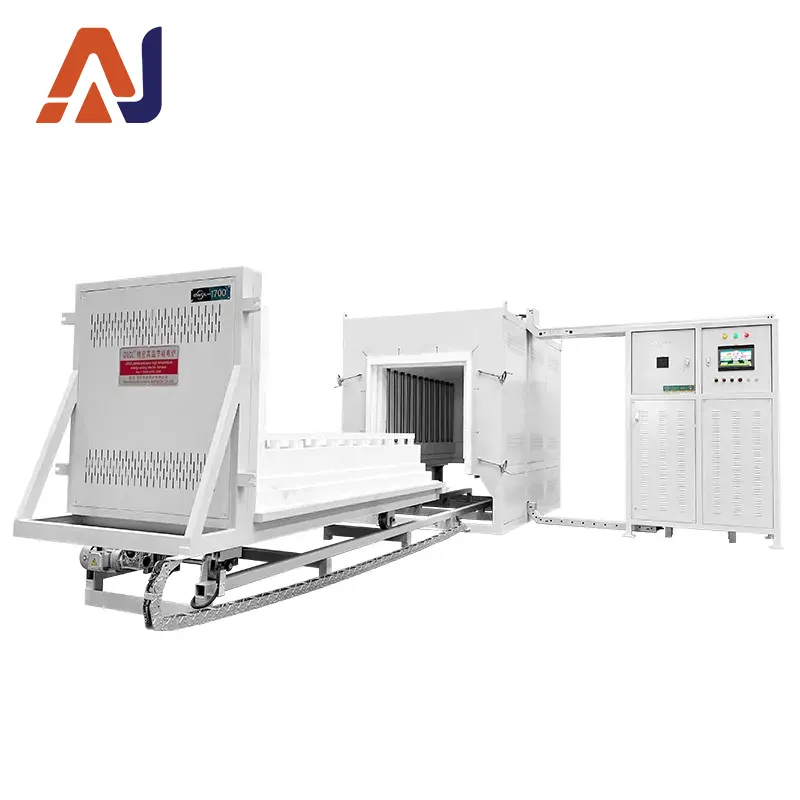

The precision energy-saving trolley electric furnace has a temperature control accuracy of ±1℃ and a temperature uniformity of ±5℃. The heating rate is adjustable from 1-20℃/min. The electric loading platform can bear a load of 1000kg. The outer shell temperature is ≤45℃, with an energy-saving rate of over 80%, ensuring safety and reliability.
| Model | AJ-STCY |
| Maximum Operating Temperature | 1750℃ |
| Long-term Operating Temperature | 1700℃ |
| Control Range | 80 to 1700℃ |
| Effective Heating Zone Dimensions | Length × Width × Height: 2000×800×700mm |
| Power Supply (AC) | 380V |
| Designed Power (approx.) | 130KW |
| Installation Position of Heating Elements | Evenly distributed on both sides of the furnace chamber |
| Temperature Control Precision | ±1℃ |
| Furnace Temperature Uniformity | ±5℃ |
| Heating Rate | Freely adjustable, with a range of 20℃/min (non-linear, fastest) to 1℃/h (slowest) |
| Temperature Measuring Element | Thermocouple (Type B), measuring range 0-1820℃ |
| Dual Temperature Control | Temperature control on both sides |
| Heating Elements | 1800-type silicon molybdenum rods on the left and right sides of the furnace chamber |
| Furnace Shell Material | Processed by CNC machine tools, with processes including polishing, grinding, pickling, phosphating, plastic powder spraying, and high-temperature baking. It features a two-color design, novel and attractive appearance, and advantages such as oxidation resistance, acid and alkali resistance, corrosion resistance, high-temperature resistance, and easy cleaning. |
| Furnace Shell Color | RAL7035 |
| Furnace Body Structure | Air-cooled double-layer structure. Effective air-cooled guide partitions enable overall cold air circulation in the furnace shell, which finally cools the heating element conductive plates before being discharged, avoiding high-temperature oxidation of the conductive plates and ensuring a good working environment. |
| Furnace Door Opening Method | The furnace door and bottom are integrally designed, with an electric opening mechanism. A motor-driven reducer drives the loading platform in and out, equipped with limit switches. |
| Cooperation Between Furnace Mouth and Loading Platform Refractories | The furnace mouth and loading platform refractories adopt a stepped cross-sealing design, with angles on both upper and lower parts of the refractories. The opening angle of the loading platform increases, and gradually decreases as the platform closes. |
| Loading Platform Capacity | 1000kg |
| Loading Platform Movement | Electric mechanical |
| Refractory Materials | The furnace lining uses vacuum-formed high-purity alumina fiber lightweight plates. Positions prone to collision during material handling (furnace mouth, furnace bottom) use lightweight hollow spherical alumina plates, featuring high operating temperature, low heat storage, resistance to rapid heating/cooling, no cracking, no slag dropping, and good thermal insulation performance (energy-saving effect is over 80% compared to old-fashioned electric furnaces). |
| Insulation Materials | Three-layer insulation: high-alumina cotton, alumina blanket, and alumina fiberboard, with an energy-saving effect over 80% compared to old-fashioned electric furnaces. |
| Furnace Body Surface Temperature | ≤45℃ during long-term continuous operation |
| Protection | Adopts an integrated module control unit with accurate control precision, designed with dual-loop control and dual-loop protection, featuring overshoot, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start protection. |
| Control | Uses closed-loop thyristor module trigger control (phase-shift trigger mode). Output voltage, current, or power is continuously adjustable with constant voltage, current, or power characteristics. The current loop is the inner loop and the voltage loop is the outer loop. When the load is suddenly applied or exceeds the current limit, the output current of the voltage regulator is limited within the rated range to ensure normal operation of the output and regulator. The voltage loop also participates in regulation to maintain stable output current and voltage within the rated range, thus protecting heating elements from excessive current/voltage impact and ensuring safe, reliable control and precision. (See electric furnace video for details) |
| Display Parameters | Temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc. |
| Buttons | Imported buttons with a service life of over 100,000 times, equipped with LED indicators |
| Temperature Curve Setting | Uses an intelligent temperature controller with multiple regulation modes (standard PID, artificial intelligence adjustment APID, MPT, etc.), featuring self-tuning and self-learning functions, no overshoot/undershoot, and 30-segment program control. It supports arbitrary slope heating/cooling control, with programmable commands (jump/cycle, run, pause, stop) and allows in-operation program modification. Adopts an AI adjustment algorithm with curve fitting function for smooth curve control. (See electric furnace video for details) |
| Multiple Curve Input | 50-segment program control function |
| Random Spare Parts | 2 heating elements, 2 sets of rod tools, 1 crucible tong, 1 pair of high-temperature gloves, 1 USB data disk, 2 sets of special-shaped kiln furniture, and 1 set of flat kiln furniture. |
| Packing List | 1 electric furnace, 2 heating elements, 2 sets of rod tools, 1 crucible tong, 1 pair of high-temperature gloves, 1 instruction manual, 1 certificate of conformity, 1 acceptance report (factory inspection report), and 1 sales delivery note. |
| Shipping Information | 1. The electric furnace is packaged in three layers: wrapped in sponge paper, then with plastic film, and finally packed in a wooden case. 2. Free door-to-door delivery domestically (free delivery within urban areas). 3. We shall bear any damage incurred during transportation of the electric furnace. 4. Logistics methods: Transportation by car, railway, ship (for export), or air (for export). For nearby destinations, our company dispatches a special vehicle for transportation (packaged with wooden pallets and cartons). |
English Optional Function List | |||
| Name | Function Introduction | Remarks | Function Code |
| Temperature controller | Standard 50-segment heating curve; optional premium instrument (B) | Either | AB |
| Touch screen | Chinese menu, storage of multiple heating process curves, historical curves and data reports (7-inch) | One out of four | C |
| IoT interface | Electric furnace RS485 communication interface to read/write real-time data such as start, pause, stop, heating curve, allowable time, etc. | D | |
| Computer control software and hardware | Computer-controlled start, pause, stop, heating curve setting/reading, parameter adjustment, etc. High reliability with display of measured value, set value, output value, segment time, segment number, heating curve, power percentage curve. Heating curves can be stored, modified, and historical data can be saved long-term with selectable intervals (1s-1h). | E | |
| PLC | Siemens PLC control (reads/writes start, pause, stop, heating curve, time, temperature curve, atmosphere, flow, switch quantity, power supply, power); open ports for data serial/parallel connection with upstream and downstream equipment | F | |
| Viewport | Viewport on furnace door with high-temperature resistant quartz glass | H | |
| Air inlet | Float flowmeter + manual valve; optional number, range, and gas medium of flowmeters | Either | K |
| Digital mass flowmeter; optional number, range, and gas medium of flowmeters | M | ||
| Exhaust port | Exhaust port, manual opening; DN30 | Either | T |
| Electric opening, automatically opens/closes at segment N according to heating curve | P | ||
| Fully automatic intake and exhaust | Electric exhaust and intake ports can be linked to heating curve segments for automatic opening/closing at any temperature segment; PLC-controlled (requires touch screen function) | Y | |
| Moving caster | Two universal wheels, two directional wheels | R | |
| Rapid cooling | Frequency converter + centrifugal fan for program-controlled cooling | N | |
| Swing-up door | Electric top-opening door + foot control panel | S | |
| Quick discharge rack | Rack (platform) made of high-temperature steel with wear-resistant heavy refractory bricks on top; cooperates with function S to quickly pull out high-temperature materials to the rack outside the furnace door after door opens | I | |
| Multipoint temperature control | Multi-sided independent temperature control for higher temperature field uniformity | X | |
| Stirring fan | Metal stirring fan (within 1050℃) - 4000; frequency converter - 1500-2000; PLC automatic start/customization with temperature segments - 4000 | Z | |
| Separate control cabinet | Control separated from furnace body; additional separate control cabinet (1600x600x400) and extended control cable (within 5m) | Q | |
| Regenerative hearth | Furnace bottom sunk 50mm hollow, multi-point support with additional burning plate; cost increased by 5% | W | |
| Tail gas treatment | Additional VOC tail gas treatment furnace 40m³/H; 80m³/h | V | |
| Corrosion-proof furnace | Furnace material resistant to acid, alkali, and hydrofluoric acid corrosion | G | |
| Heating element protection | Heating element with protection against powder pollution and volatile corrosion | L | |
| Clean furnace | Furnace interior protected with ceramics, high-temperature glass, high-temperature metal, etc. to prevent dust and volatiles | J | |
