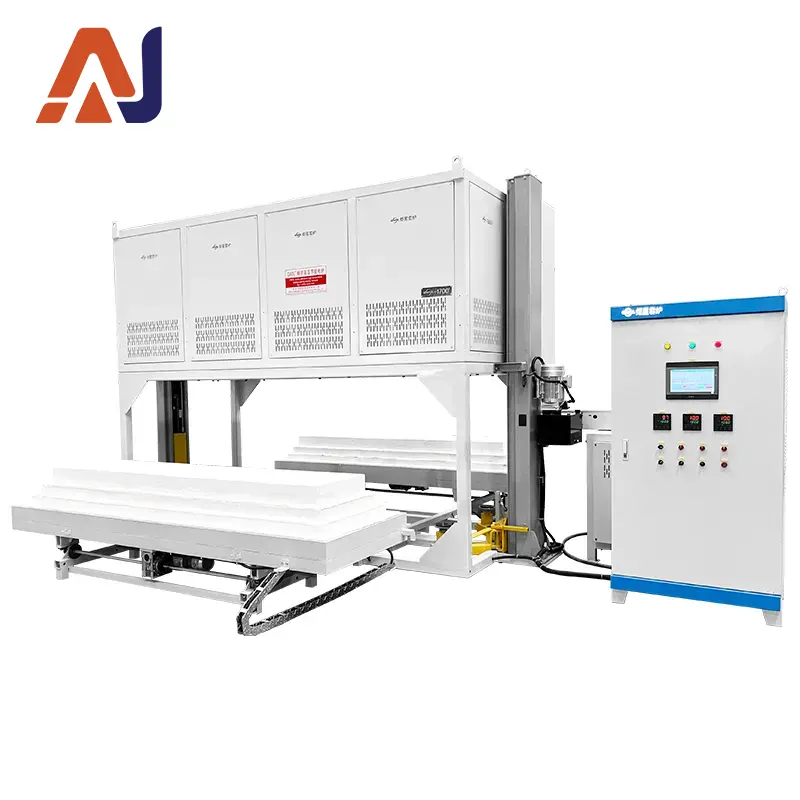

The 1700℃ high-temperature furnace can be used for a long time at ≤1650℃. Three temperature control points ensure uniformity of ±5℃. It is heated by 1800-type molybdenum disilicide rods, with adjustable heating rates in different gears. With 380V/140KW power supply and a three-layer transformer, it is energy-saving, efficient, safe and reliable.
Core Features
| Temperature | 1700℃ |
| Long-term Operating Temperature | Long-term operating temperature ≤1650℃ |
| Control Range | 80 to 1700℃ |
| Furnace Chamber Dimensions | 2500×550×650 mm |
| Voltage/Power | 380V/designed power 140KW |
| Number of Loading Platforms | 2 |
| Temperature Measuring Element | Thermocouple (Type B), measuring range 0-1700℃ |
| Temperature Control Points | 3 control points (left, middle, right) |
| Transformers | 3 transformers (30KW-80KW-30KW respectively) |
| Installation Position of Heating Elements | Around the furnace |
| Temperature Control Precision | ±1℃ (integrated circuit control, no overshoot) |
| Furnace Temperature Uniformity | ±5℃ (depending on the size of the furnace chamber) |
| Heating Rate | Freely adjustable, with the following ranges: |
| - Below 1400℃: maximum heating rate within 10℃/min | |
| - Above 1400℃: maximum heating rate within 5℃/min | |
| - Minimum heating rate: 1℃/h | |
| Heating Elements | 1800-type silicon molybdenum rods around the furnace (48 pieces in total, with 6mm hot ends and 12mm cold ends) |
| Exhaust Ports | 7 exhaust ports with a diameter of 60mm in the middle of the furnace top (evenly distributed on the furnace top); exhaust pipes are corundum tubes |
| Loading Platform | Electric in/out movement, hydraulic lifting |
| Insulation Materials | - Insulation layers around the furnace (5 layers): 1st layer: 1800-type lightweight energy-saving microporous foam ceramic high-temperature thermal insulation material, 120mm thick 2nd layer: 1600-type alumina fiberboard, 50mm thick (Juxing) 3rd layer: 1600-type alumina fiberboard, 50mm thick (Juxing) 4th layer: 1400-type alumina fiberboard, 50mm thick (Juxing) 5th layer: zirconium-containing insulation cotton, 100mm thick - Furnace top (3 arch materials): 1st layer: 1800-type lightweight energy-saving microporous foam ceramic high-temperature thermal insulation material, 120mm thick 2nd layer: 1600-type alumina fiberboard, 50mm thick (Juxing) 3rd layer: top layer ceramic fiber blanket, 100mm thick |
| Furnace Mouth Refractories | 4 cross steps at the furnace mouth: 1st layer: 1800-type alumina hollow sphere bricks 2nd layer: 1800-type alumina hollow sphere bricks 3rd layer: 1600-type M28 bricks 4th layer: 1600-type M28 bricks |
| Loading Platform Refractories | 4 cross steps on the loading platform: 1st layer: 1800-type alumina hollow sphere bricks 2nd layer: 1800-type alumina hollow sphere bricks 3rd layer: 1600-type M28 bricks 4th layer: 1600-type M28 bricks |
| Furnace Body Surface Temperature | ≤ room temperature + 35℃ during long-term continuous operation |
| Protection | Adopts an integrated module control unit with accurate control precision, designed with dual-loop control and dual-loop protection, featuring overshoot, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start protection. |
| Control | Uses closed-loop thyristor module trigger control (phase-shift trigger or zero-crossing trigger mode). Output voltage, current, or power is continuously adjustable with constant voltage, current, or power characteristics. The current loop is the inner loop and the voltage loop is the outer loop. When the load is suddenly applied or exceeds the current limit, the output current of the voltage regulator is limited within the rated range to ensure normal operation of the output and regulator. The voltage loop also participates in regulation to maintain stable output current and voltage within the rated range, thus protecting heating elements from excessive current/voltage impact and ensuring safe, reliable control and precision. |
| Touchscreen | 7-inch touchscreen for centralized control, capable of displaying real-time voltage, current, and power. It features a Chinese menu, and displays temperature, temperature segment number, segment time, remaining time, output power percentage, multiple stored heating process curves, historical curves, and data reports, etc. |
| Random Spare Parts | 2 heating elements, 2 sets of rod tools, 1 crucible tong, 1 pair of high-temperature gloves |
| Warranty Scope and Period | The electric furnace comes with a 1-year free warranty; heating elements are not covered. |
| Notes | 1. To avoid affecting the service life of the electric furnace, we recommend a heating rate of less than 15℃/min (excessively fast heating at high temperatures will shorten the service life of heating elements). 2. This lifting furnace has no vacuum-sealed structure, so flammable and explosive gases must not be introduced. 3. After using this lifting furnace for a period of time, tiny cracks may appear in the furnace chamber, which is a normal phenomenon and will not affect use. It can be repaired with an alumina coating. 4. Introducing corrosive gases is not recommended. If strong corrosive gases such as S or Na need to be introduced, please inform us in advance, and we will specially treat the furnace chamber. 5. Do not allow high-temperature solutions to leak onto the furnace bottom. To avoid this, use a backing plate or alumina powder for isolation. 6. The instrument should be placed in a well-ventilated and dry place. |
| Shipping Information | 1. The electric furnace is packaged in three layers: wrapped in sponge paper, then wrapped with plastic film. 2. Free door-to-door delivery domestically (free delivery within urban areas). 3. We shall bear any damage incurred during transportation of the electric furnace. 4. Logistics methods: Transportation by car, railway, ship (for export), or air (for export). For nearby destinations, our company dispatches a special vehicle for transportation (packaged with wooden pallets and cartons). |
