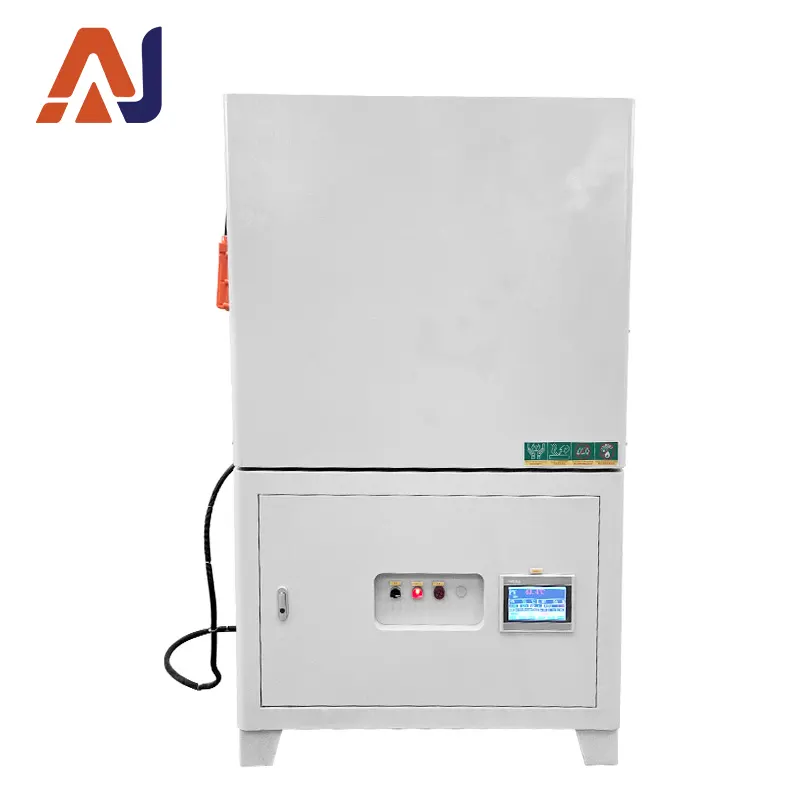

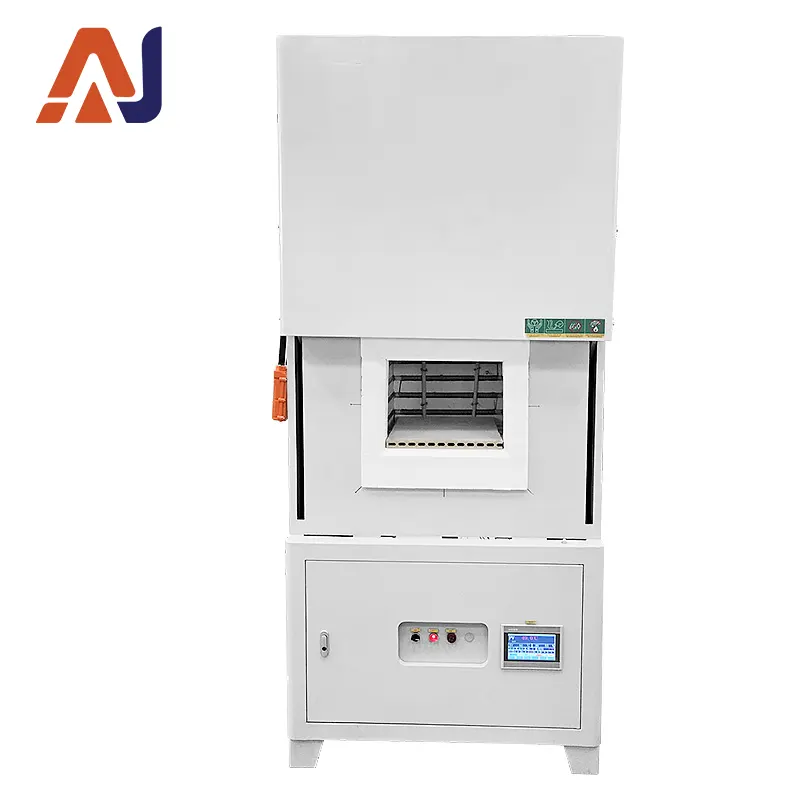

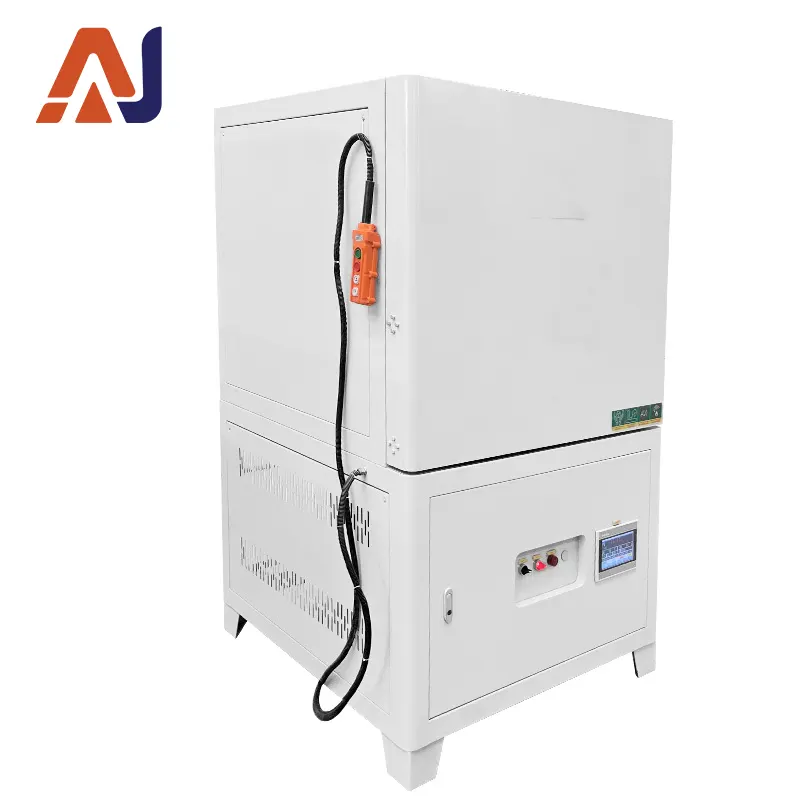

1200℃ high-temperature electric top-opening door: Electric opening and closing saves manpower, suitable for high-temperature processing in multiple industries. It features high temperature control accuracy, balancing operational convenience with process reliability, and meets the needs of scientific research and industrial applications.
| Temperature Control Range | 100-1200℃ | 100-1400℃ | 100-1600℃ | 100-1700℃ | 100-1800℃ |
| Temperature Control Accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temperature Measuring Element | K | S | B | B | B |
| Heating Element Material | High-temperature alloy resistance wire | Silicon carbide rod | Silicon-molybdenum rod | Model 1800 silicon-molybdenum rod | Model 1850 silicon-molybdenum rod |
| Heating Element Installation Position | Three-sided heating (both sides + bottom) | Top-bottom / both sides | Both sides | Both sides | Both sides |
| Heating Rate | 40℃/min (non-linear) | ||||
| Furnace Structure and Material | The furnace body adopts an air-cooled double-layer carbon steel structure. Effective air-cooled guide partitions enable overall cold air circulation of the furnace shell. The air is discharged after cooling the conductive sheets of heating elements, avoiding high-temperature oxidation of the conductive sheets and ensuring a good working environment. | ||||
| Door Opening Mode | The furnace door can be side-opened axially by 180° and rotated by 360°. An elastic lock is installed on the side of the door for effective locking. The elasticity of the lock absorbs the expansion of refractory materials, ensuring free expansion and contraction of refractories due to temperature changes and achieving effective sealing. | ||||
| Refractory Insulation Material | The furnace lining is made of vacuum-formed high-purity lightweight alumina material, featuring high service temperature, low heat storage, resistance to rapid temperature changes, no cracking, no slag dropping, and excellent insulation performance. | ||||
| Furnace Shell Temperature | Shell temperature ＜ 45℃ | ||||
| Safety Protection | Adopts an integrated module control unit with high control accuracy, and is designed with dual-circuit control and dual-circuit protection. It has protections against overshoot, overregulation, underregulation, thermocouple breakage, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and features soft start. | ||||
| Multipoint Temperature Control | The furnace is designed with a function to cut off the main heating circuit when the door is opened at high temperature during operation, greatly reducing the risk of electric shock when taking materials at high temperature. | ||||
| Safe Temperature Control | Adopts closed-loop thyristor module trigger control, with phase-shift triggering or zero-crossing triggering. The output voltage, current, or power is continuously adjustable, featuring constant voltage, constant current, or constant power. The current loop is the inner loop and the voltage loop is the outer loop. When a load is suddenly applied or the load current exceeds the current limit, the output current of the voltage regulator is limited within the rated current range to ensure normal operation of the output and regulator. Meanwhile, the voltage loop also participates in regulation, limiting the output current of the regulator within the rated range and maintaining stable output current and voltage with sufficient adjustment margin. This protects heating elements from excessive current and voltage impact, achieving safe, reliable control and high control accuracy. | ||||
| Temperature Curve Setting | Adopts an intelligent temperature controller with multiple regulation modes such as standard PID, artificial intelligence regulation (APID), and MPT. It has self-tuning and self-learning functions, with excellent control characteristics of no overshoot and no underregulation. Equipped with 30-segment program control function, it can realize heating and cooling control with arbitrary slope, and has programmable/operable commands such as jump (cycle), run, pause, and stop. It allows real-time program modification during operation. Adopting an AI regulation algorithm with curve fitting function, it can achieve smooth and steady curve control. | ||||
| Number of Heating Curve Segments | 50-segment program control function. Setting options: 50 segments for one curve, 28 segments per curve for two curves, 15 segments per curve for three curves, 9 segments per curve for five curves. Multiple curves can be input simultaneously and called arbitrarily during use. | ||||
| Panel Buttons | Two buttons/knobs: Main power button/knob, heating chamber switch button/knob. | ||||
| Random Accessories | 1 piece of crucible tongs, 1 pair of high-temperature gloves. | ||||
