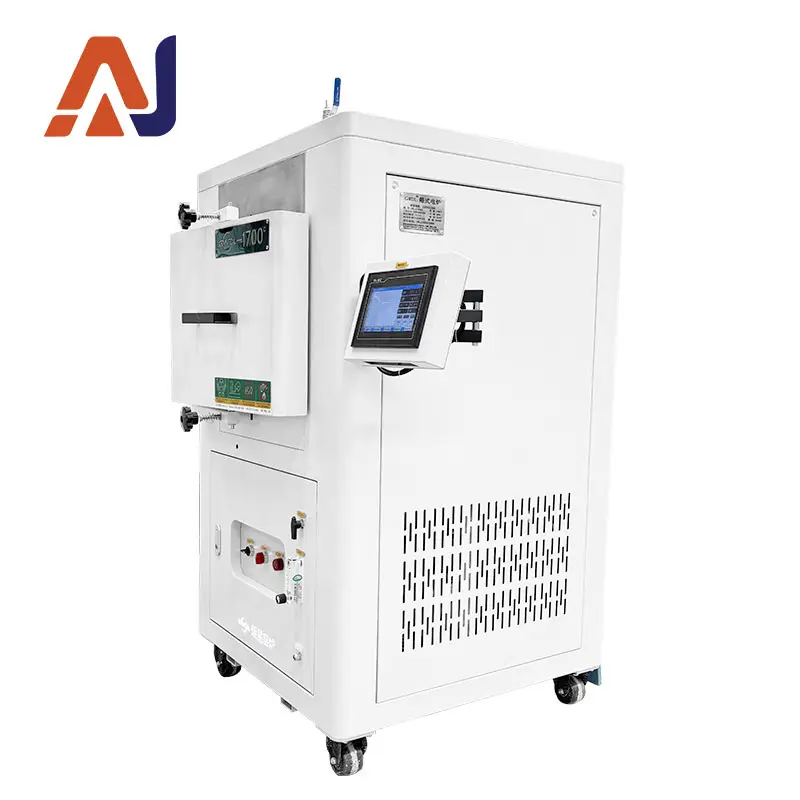

1700°C atmosphere box-type high-temperature furnace with a 300×200×200mm chamber, silicon molybdenum rod heating on both sides, 7-inch touch screen + 30-segment programmable temperature control, and support for nitrogen/argon atmosphere introduction with positive/negative pressure monitoring
| Max. Temperature | 1700°C |
| Long-term Service Temperature | ≤1650°C |
| Control Range | 50°C to 1700°C |
| Power Supply (AC) | 380V |
| Chamber Size (mm) | 300×200×200 (D×W×H) |
| Temperature Sensor | Type B thermocouple, measuring range 0–1780°C |
| Heating Element & Position | Molybdenum disilicide (MoSi₂) heating elements, installed on both sides of the chamber. |
| Temperature Control Accuracy | ±1°C (Integrated circuit control, no overshoot) |
| Touch Screen | 7-inch true-color touch screen with functions for temperature setting, recipe storage, historical curves, data reports, alarm information, etc. |
| Furnace Structure & Material | Air-cooled double-layer carbon steel structure. Efficient air-cooling guide baffles enable overall cold-air circulation inside the furnace shell, ultimately cooling the heating element terminals before exhausting, preventing high-temperature oxidation of the terminals and ensuring a good working environment. |

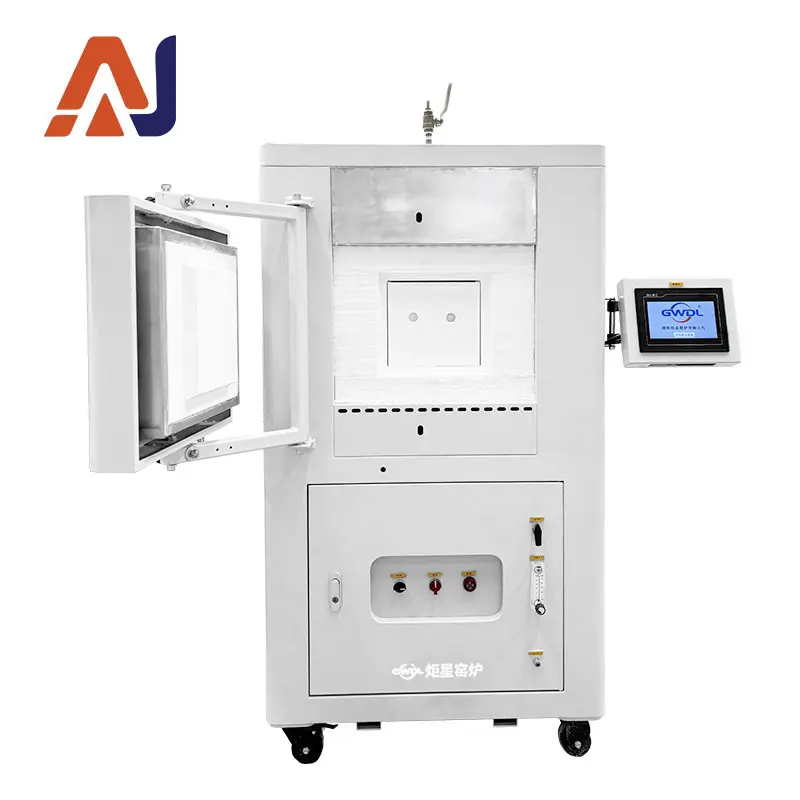

| Door Opening | Axial 180° side-opening. Equipped with an elastic lock on the side of the furnace door for effective locking. The elasticity of the lock accommodates refractory expansion, allowing for free thermal expansion/contraction of the refractory material while maintaining an effective seal. |
| Furnace Shell Temperature | ≤45°C |
| Temperature Profile Setting | Intelligent temperature controller equipped with multiple control modes such as standard PID, AI adjustment (APID), or MPT. Features self-tuning/self-learning capabilities with no overshoot or undershoot. Offers 30-segment program control, enabling heating/cooling ramps with any slope. Supports programmable/operational commands like jump (loop), run, pause, and stop, and allows on-the-fly program modification during operation. Employs an AI adjustment algorithm with curve-fitting function for smooth and stable profile control. |
| Multiple Profile Function | 30-segment program control supporting multiple modes: 1 curve (30 segments), 2 curves (14 segments each), 3 curves (9 segments each), 5 curves (5 segments each). Multiple curves can be stored and recalled as needed. |
| Protection Functions | Integrated modular control unit with dual-loop control and dual-loop protection. Includes protection against: overshoot, overrun, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft-start faults. |
| Control Method | Closed-loop thyristor (SCR) module trigger control (phase-shift or zero-crossing trigger). Features continuously adjustable output voltage, current, and power, with constant voltage, constant current, or constant power operation. Utilizes dual-loop regulation with an inner current loop and an outer voltage loop. During sudden load changes or overcurrent conditions, the output is limited to the rated range to protect the heating elements while maintaining stable output. Ensures safe, reliable control and high precision. |
| Valve | Imported stainless steel valve |
| Pressure Detection | One dual-indicator pressure gauge showing both positive and negative pressure |
| Gas Flow Meter | One float-type flow meter |
| Gas Inlet | 1 |
| Gas Outlet | 1 |
| Applicable Atmospheres | Nitrogen, Argon, Carbon Monoxide, Oxygen, etc. |
| Communication Interface | RS485, RS232, USB |
