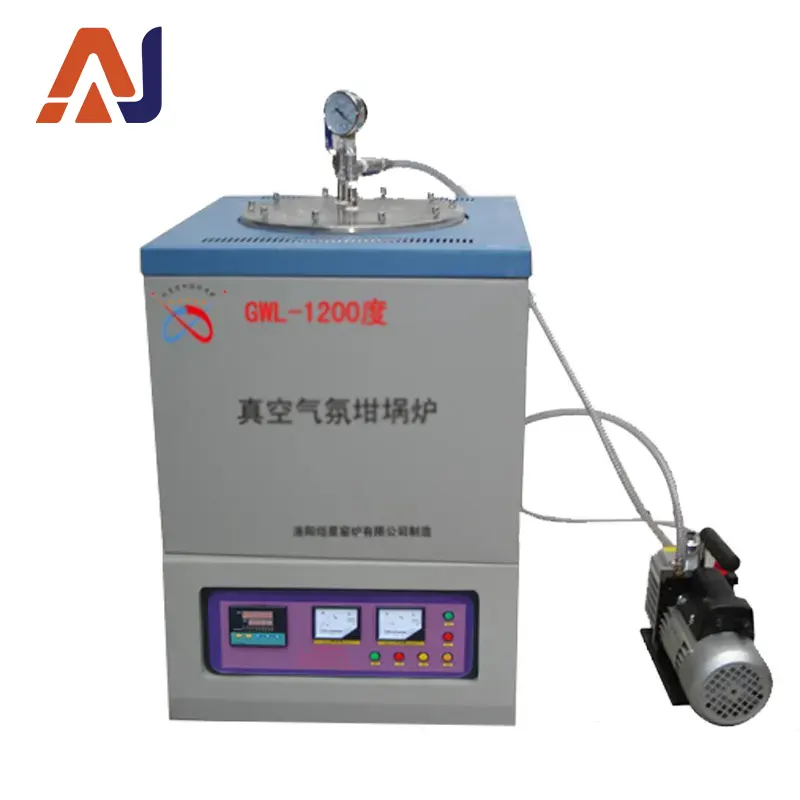

Laboratory vacuum atmosphere well-type furnace, ±1℃ temperature control experimental sintering furnace

Applications:

Widely used in production and experiments in fields such as ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, special materials, and building materials.

Features:

Control accuracy: ±1℃; Furnace temperature uniformity: ±1℃ (varies according to the size of the heating chamber).
Easy operation: Programmable with PID self-tuning function, enabling automatic heating, automatic heat preservation, and automatic cooling, with no need for supervision. It can be optionally equipped with computer communication function, allowing operation of the electric furnace via computer (including starting/stopping the furnace, pausing heating, setting heating curves, storing heating curves, viewing historical curves, etc.). The software is free; for details, please refer to "Computer Control System".
Fast heating: The heating rate is adjustable from 1℃/h to 40℃/min.
Energy-saving: The furnace chamber is made of imported fiber, which is high-temperature resistant and can withstand rapid heating and cooling.
**The furnace body is finely spray-coated to resist corrosion and acid-alkali. The furnace body is isolated from the furnace chamber with air cooling, and the furnace wall temperature is close to room temperature.
Dual-loop protection: Protects against over-temperature, over-pressure, over-current, thermocouple breakage, power failure, etc.
**The furnace lining is made of imported refractory materials, featuring good heat preservation, high temperature resistance, and resistance to rapid heating and cooling.
Temperature categories: Five types available, including 1200℃, 1400℃, 1600℃, 1700℃, and 1800℃.

Maximum Temperature	1200℃
Voltage (AC)	220V/380V
Maximum Operating Temperature	1250℃
Long-term Operating Temperature	1200℃
Temperature Control Precision	±1℃
Temperature Field Uniformity in Furnace	±1℃ (depending on the size of the heating chamber); multi-point temperature control can be adopted for higher requirements
Temperature Measuring Element and Range	Nickel-chromium-nickel-silicon K-type, measuring range 0-1350℃
Number of Programming Curve Segments	50 segments for one group, 22 segments for two groups, 8 segments for three groups
Heating Rate	Adjustable from 1℃/h to 40℃/min
Heating Elements	Silicon carbide rods
Installation Position and Method of Heating Elements	Vertically installed on both sides of the furnace chamber
Refractory Materials	High-purity alumina fiberboard
Cooling Structure	Double-layer furnace shell, air cooling
Furnace Body Temperature	≤45℃
Computer Interfaces	RS485, RS232, USB
Warranty Scope and Period	The electric furnace is covered by a 1-year free warranty; heating elements are not covered (free replacement for natural damage within three months)
Random Spare Parts	2 heating elements, 2 sets of rod tools, 1 instruction manual, 1 certificate of conformity, 1 furnace door insulating brick, 1 pair of crucible tongs, 1 pair of high-temperature gloves

Some models are available in stock. The following furnace chamber sizes can be customized according to customer requirements (see "Special Customization" for details).

Furnace Chamber Size (Depth × Width × Height)Unit: mm	Voltage (AC V)	Maximum Power (KW) (depending on heating rate)	Furnace Body Size (Depth × Width × Height)Unit: mm
200×150×150	380/220	5	650×750×650
240×130×130	380/220	5	650×750×650
300×200×200	380	10	980×800×800
400×200×200	380	12	1080×800×800
500×300×200	380	15	1200×900×800
500×300×300	380	18	1200×900×900
600×400×400	380	24	1350×1000×1000
800×500×500	380	35	1600×1100×1200

List of Optional Additional Functions

Name	Function Introduction		Function Code
Temperature Controller	Standard 50-segment heating curve, optional imported controller (B)	Choose one out of two.	AB
Touch Screen	Chinese menu, multi-curve storage, historical data recording (7-inch)	Choose one out of two.	C
IoT Interface	RS485 communication for real-time data access (start/pause/stop/curves/timing)		D
Computer Control System	PC software for full furnace control (start/stop/curve setting/data logging). Supports data recording (1s-1h intervals), parameter adjustment, and long-term storage.		E
PLC Control	Siemens PLC (controls heating curves, atmosphere, flow rates, power). Open ports for upstream/downstream equipment integration.		F
Observation Window	High-temperature quartz glass window on furnace door		H
Gas Inlet	Float flow meter + manual valve (selectable flow range/gas type)	Choose one out of two.	K
Gas Inlet	Digital mass flow controller (selectable flow range/gas type)	Choose one out of two.	M
Exhaust	Manual exhaust valve	Choose one out of two.	T
Exhaust	Automatic electric valve (program-controlled by heating curve segments)	Choose one out of two.	P
Full Auto Gas Control	PLC-controlled electric valves synchronized with heating curves (requires touch screen option)		Y
Casters	2 swivel + 2 fixed wheels		R
Rapid Cooling	Program-controlled cooling with inverter + centrifugal fan		N
Multi-zone Control	+10% cost per additional heating zone, +20% for independent control		X
Stirring Fan	Metal fan (<1050°C):-4000; Inverter: -1500-2000; PLC-auto control: -4000		Z
Separate Control Cabinet	Independent cabinet (1600×600×400mm) with 5m control cables		Q
Heat-storage Base	50mm recessed hollow base with multi-point support (+5% cost)		W
Exhaust Treatment	VOC treatment furnace (40m³/h or 80m³/h options)		V
Corrosion-resistant Chamber	Acid/alkali/HF-resistant materials		G
Heating Element Protection	Protective features against powder contamination and vapor corrosion		L
Clean Chamber	Ceramic/glass/metal lining to prevent dust/vapor contamination		J
