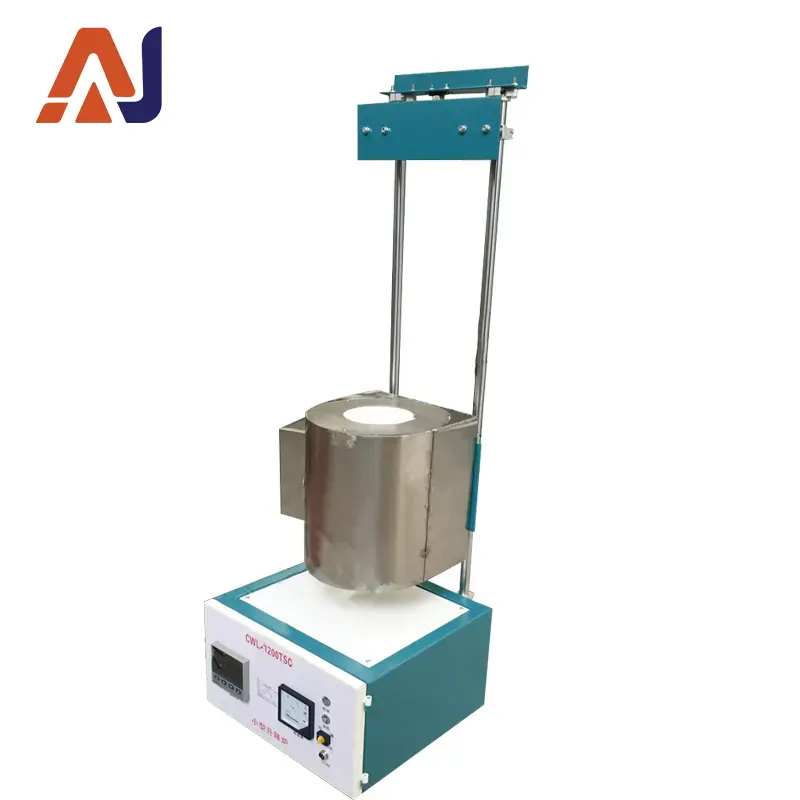

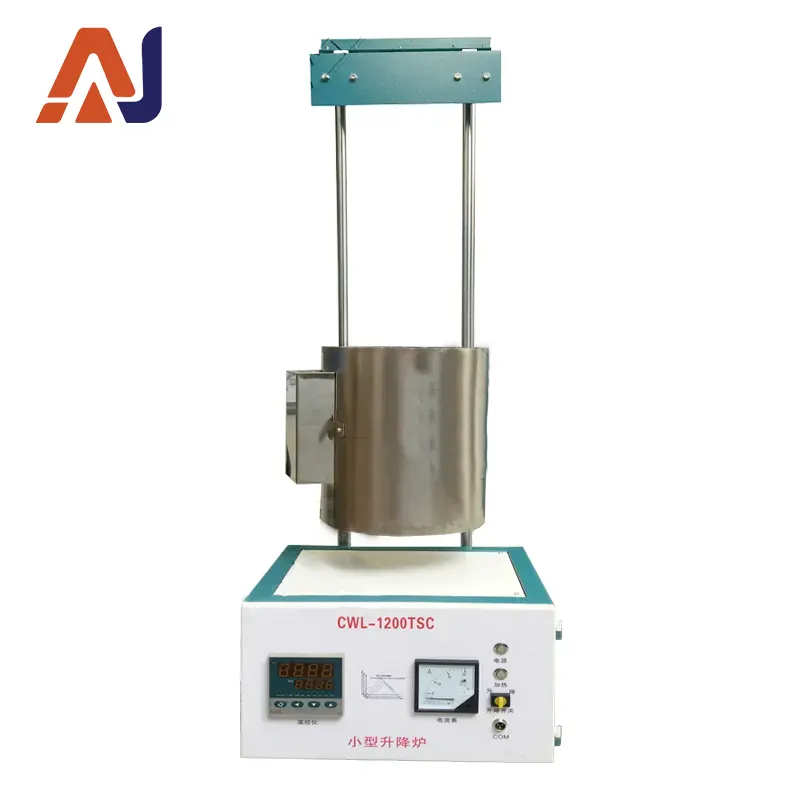

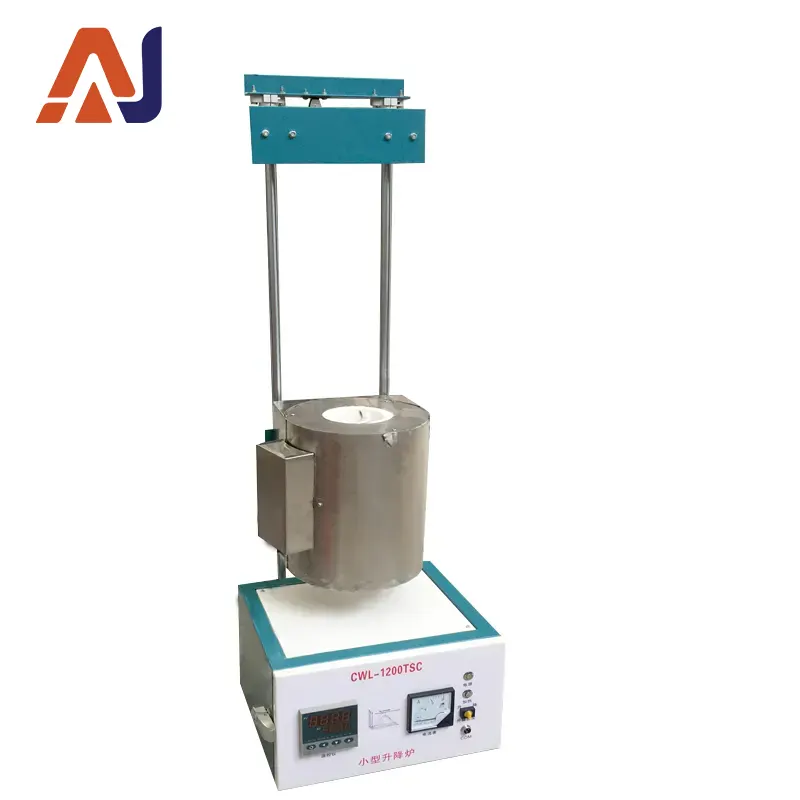

Tubular Lifting Furnace

Temperature

1200℃

1400℃

1600℃

1700℃

1800℃

Voltage (AC)

220V/380V

220V/380V

220V/380V

220V/380V

220V/380V

Maximum Operating Temperature

1250℃

1450℃

1650℃

1730℃

1820℃

Long-term Operating Temperature

1200℃

1400℃

1600℃

1700℃

1800℃

Temperature Control Accuracy

±1℃

Temperature Uniformity in Furnace

±1℃

Temperature Control Points

1

Temperature Measurement Element and Range

Platinum-rhodium S thermocouple, 0-1700℃

Platinum-rhodium S thermocouple, 0-1700℃

Platinum-rhodium-platinum B thermocouple, 0-1820℃

Platinum-rhodium-platinum B thermocouple, 0-1820℃

Platinum-rhodium-platinum thermocouple or fiber optic infrared temperature measurement

Touchscreen Full Control

- Item Name

Parameters

- Size

7-inch, 10-inch, 14-inch TFT true color

- Overall Dimensions

206W×156H×50D (mm), 280W×200H×50D (mm)

- Resolution

800×480

- Backlight

LED

- Power

5W

- Weight

1Kg

- Language

Chinese/English (switchable)

- Full-screen Display and Operation

Instrument screen,  (light column graph), historical trends, data reports, alarm information, data export, process flow, system management, etc.

- Control Object

Temperature

- Number of Furnaces Controlled

1-6 units

- Temperature Control

Touchscreen + high-precision integrated module

- Start Heating

Touch operation, supports wireless mouse

- Pause Heating

- Stop Heating

- Rotating Table In/Out

- Rotating Table Lifting

- Start, Pause, Stop, Programming, etc.

- Flow Chart

Compiled according to furnace structure or product process flow

- Temperature Curve Programming

Touch operation, 30 segments per curve

- Number of Stored Temperature Curves

Unlimited (each curve can be named in Chinese/English)

- Real-time Status Display

Running curve name, running segment number, segment time, segment running time, digital temperature, real-time curve, power output percentage

- Start from Selected Segment (Cross-segment Start)

Touch operation

- Curve Range

Adjustable

- Historical Curves (Graph + Text)

Approximately 30 months of storage

- Data Reports (EXCEL)

Approximately 30 months of storage, multi-point display (expandable via USB drive)

- Interval for Historical Curves/Reports Storage

Adjustable 1-3600 seconds, multi-point display (expandable via USB drive)

- Alarm Indication

Color change (red)

- Alarm Information Language

Chinese display (alarm time and event description in Chinese)

- Data Export Interface

USB

- Printer Interface

Parallel port

- Touchscreen Operation Protection

With password setting (unauthorized operation prohibited without password)

- Communication Port

RS485

Heating Rate

Adjustable from 1℃/h to 40℃/min

Heating Elements

Silicon carbide rods

Silicon carbide rods

Type 1800 silicon molybdenum rods

Type 1800 silicon molybdenum rods

Type 1900 silicon molybdenum rods/tungsten wires/graphite

Installation Position and Method of Heating Elements

Vertically installed around the furnace chamber

Refractory Material

High-purity alumina zirconium-containing fiberboard

High-purity alumina zirconium-containing fiberboard

Imported high-purity alumina fiberboard

Imported Morgan lightweight material

Imported high-purity Morgan lightweight material

Loading Table Lifting

Electric lifting, can stop at any point during lifting

Cooling Structure

Double-layer furnace shell, air-cooled

Furnace Body Temperature

≤45℃

Computer Interface

RS485, RS232, USB
