Manual hydraulic lifting furnace 1200℃, temperature control ±1℃, precision sintering equipment

Control accuracy: ±1℃; Furnace temperature uniformity: ±1℃ (depending on the size of the heating chamber).
Easy to operate, programmable, with PID self-tuning, automatic heating, automatic heat preservation, and automatic cooling. It can be additionally equipped with computer communication function to operate the electric furnace via computer (starting the furnace, stopping the furnace, pausing heating, setting heating curves, storing heating curves, viewing historical curves, etc.). The software is free of charge. For details, see: Computer Control System.
Fast heating (heating rate adjustable from 1℃/h to 40℃/min).
Energy-saving (the furnace chamber is made of imported fiber, which is high-temperature resistant and can withstand rapid heating and cooling).
The furnace body is sprayed with high-temperature plastic, which is corrosion-resistant and acid-alkali resistant. The furnace body is isolated from the furnace chamber and adopts air cooling, so the furnace wall temperature is close to room temperature.
Dual-loop protection (for over-temperature, over-pressure, over-current, thermocouple breakage, power failure, etc.).
The furnace chamber is made of imported refractory materials, with good thermal insulation performance, high temperature resistance, and resistance to rapid cooling and heating.

Temperature	1200℃
Voltage (AC)	220V/380V
Maximum Operating Temperature	1250℃
Long-term Operating Temperature	1200℃
Temperature Control Precision	±1℃
Temperature Uniformity in Furnace	±1℃ (depending on the size of the heating chamber); multi-point control can be adopted for higher requirements
Temperature Measuring Element and Range	Platinum-rhodium thermocouple (Type S), measuring range 0-1700℃
Number of Programming Curve Segments	50 segments for one group, 22 segments for two groups, 8 segments for three groups
Heating Rate	Adjustable from 1℃/h to 40℃/min
Heating Elements	Silicon carbide rods
Installation Position and Method of Heating Elements	Vertically installed on both sides of the furnace chamber
Refractory Materials	High-purity alumina zirconium-containing fiberboard
Loading Platform Capacity	300-500Kg
Lifting Method	Manual hydraulic
Cooling Structure	Double-layer furnace shell, air-cooled
Furnace Body Temperature	≤45℃
Computer Interfaces	RS485, RS232, USB
Warranty Scope and Period	The electric furnace comes with a 1-year free warranty; heating elements are not covered
Random Spare Parts	2 heating elements, 2 sets of rod tools, 1 instruction manual, 1 certificate of conformity, 1 furnace door insulation brick, 1 crucible tong, 1 pair of high-temperature gloves

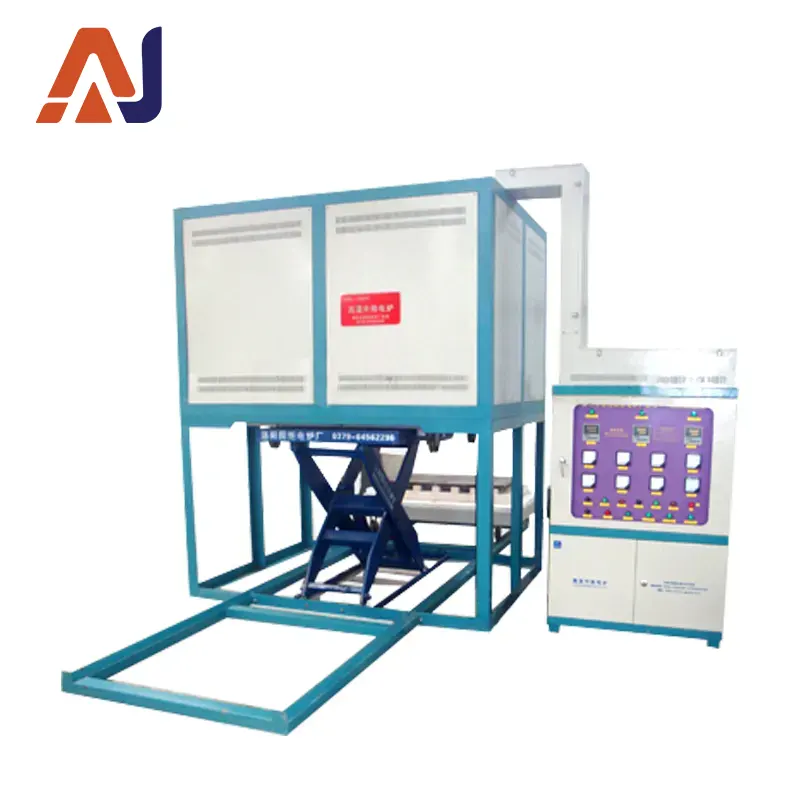

High-temperature lifting electric furnace. High-temperature lifting electric furnace.
