1700℃ Dental Ceramic Sintering Furnace: 7-Inch Touch Screen with Programmable Function, Furnace Shell Temperature ≤45℃ & Anti-Interference, Supports Atmosphere Injection and Data Export, Suitable for Scientific Research and Production, Efficient and Reliable

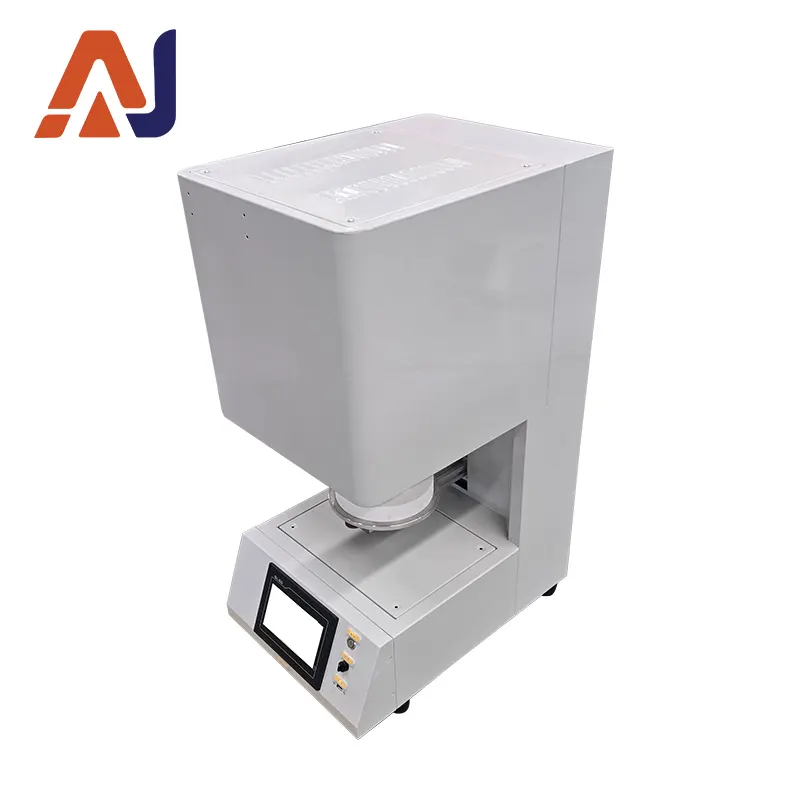

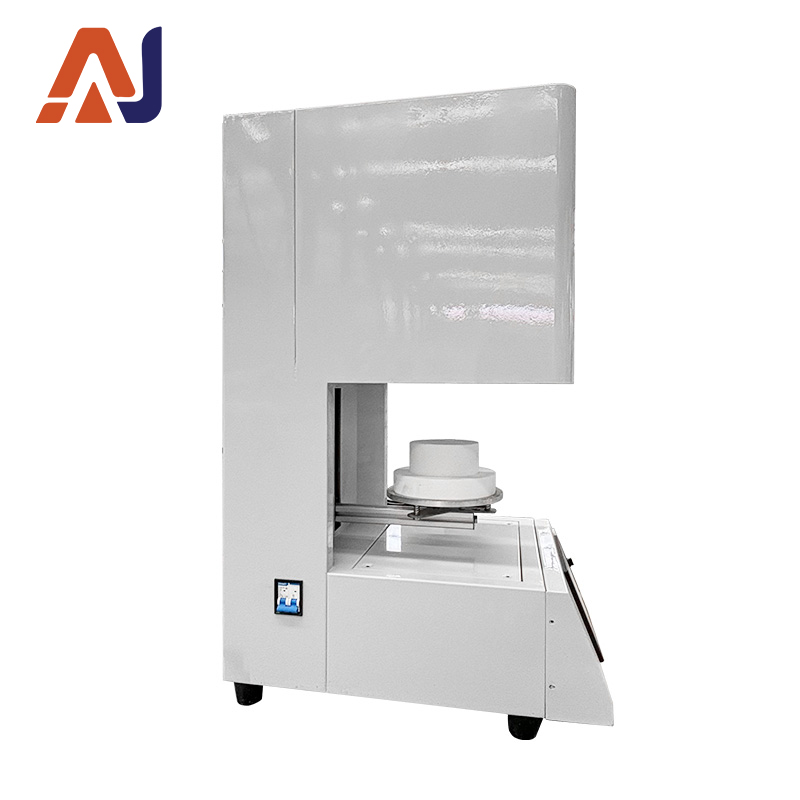

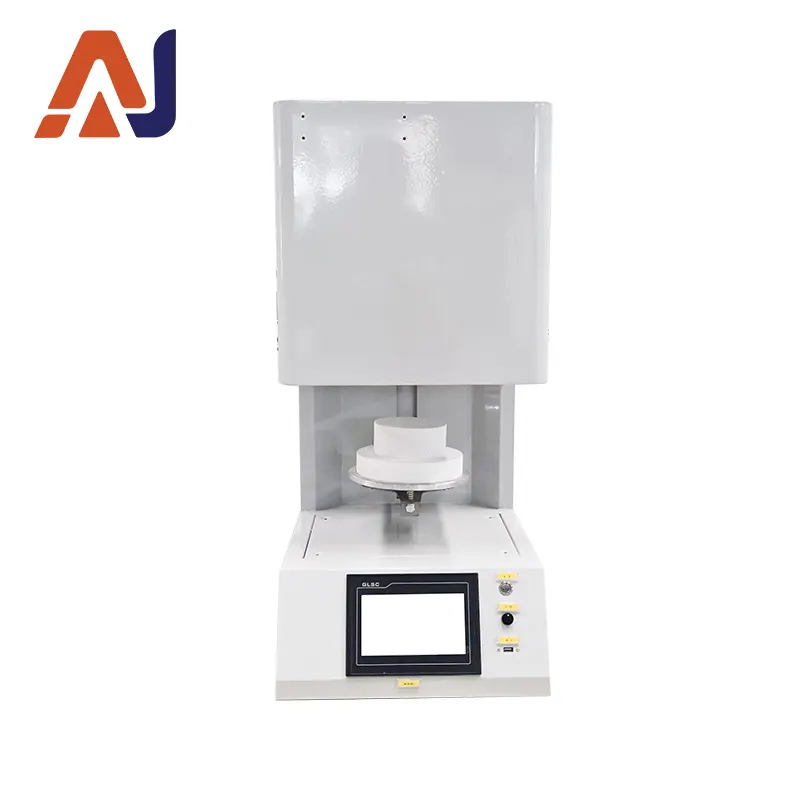

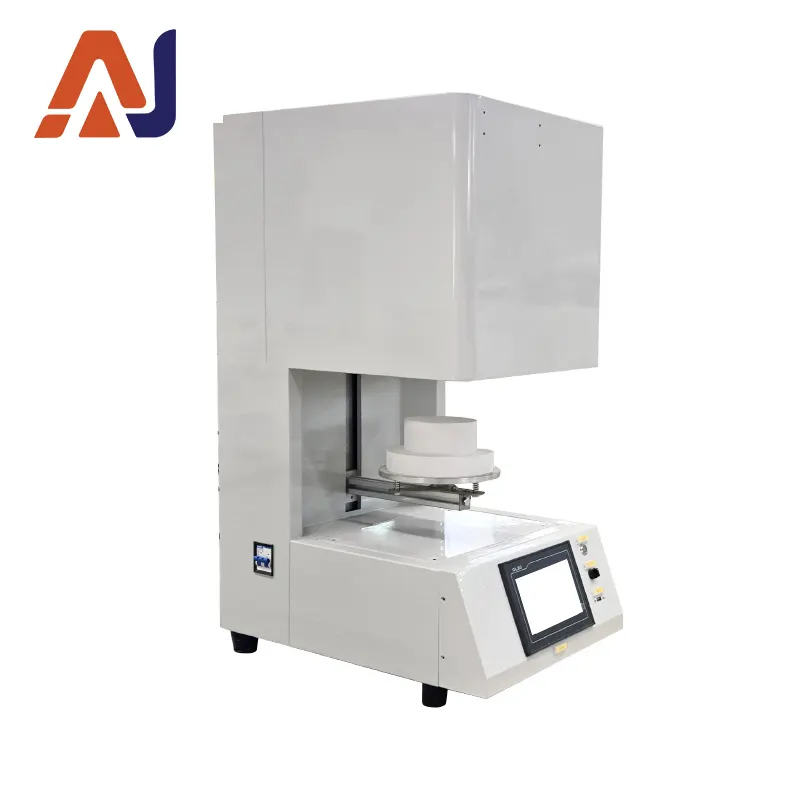

TSC Series High-Temperature Precision Lifting Furnace (as shown in the figure) integrates the control system and furnace chamber into one unit. The furnace lining is made of imported German MESCHUPP vacuum-formed high-purity alumina fiber lightweight aggregate board.
Heated by silicon carbide rods or molybdenum disilicide rods, it is a specialized equipment developed for laboratories of colleges and universities, scientific research institutes, as well as industrial and mining enterprises. It is designed for the sintering, melting, analysis, and production of ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, special materials, building materials, metals, non-metals, and other compound materials.
The control panel is equipped with a touch screen, control power switch, main heating start/stop buttons, USB interface, lifting switch, and buzzer for real-time monitoring of the system's operating status. Adopting reliable integrated circuits, the product ensures a stable working environment and strong anti-interference capability. When operating at the maximum temperature, the furnace shell temperature is ≤ 45℃, which significantly improves the working environment. Featuring microcomputer program control and programmable temperature curves, it enables automatic heating and cooling. Temperature control parameters and programs can be modified during operation, offering flexibility, convenience, and ease of use.
Item | 1200℃ | 1400℃ | 1600℃ | 1700℃ | 1800℃ |
Voltage (AC) | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
Maximum Operating Temperature | 1250℃ | 1450℃ | 1650℃ | 1730℃ | 1820℃ |
Long-term Operating Temperature | 1200℃ | 1400℃ | 1600℃ | 1700℃ | 1800℃ |
Temperature Control Precision | ±1℃ | ||||
Temperature Uniformity in Furnace | ±1℃ | ||||
Temperature Control Points | 1 | ||||
Temperature Measuring Element & Range | Platinum-Rhodium S (0-1700℃) | Platinum-Rhodium S (0-1700℃) | Platinum-Rhodium Platinum B (0-1820℃) | Platinum-Rhodium Platinum B (0-1820℃) | Platinum-Rhodium Platinum or Fiber Optic Infrared Temperature Measurement |
Touch Screen Full Control | Item Name | Parameters | |||
Size | 7-inch / 10-inch / 14-inch TFT True Color | ||||
Overall Dimension | 206W156H50D(mm), 280W200H50D(mm) | ||||
Resolution | 800*480 | ||||
Backlight | LED | ||||
Power Consumption | 5W | ||||
Weight | 1Kg | ||||
Language | Chinese/English (Switchable) | ||||
Full-screen Display & Operation | Instrument Screen, Light Column Graph, Historical Trend, Data Report, Alarm Information, Data Export, Process Flow, System Management, etc. | ||||
Control Object | Temperature | ||||
Number of Controlled Furnaces | 1-6 Units | ||||
Temperature Control Mode | Touch Screen + High-precision Integrated Module | ||||
Start Heating | Touch Operation, Support Wireless Mouse | ||||
Pause Heating | - | ||||
Stop Heating | - | ||||
Material Transfer Table In/Out | - | ||||
Material Transfer Table Lifting | - | ||||
Start/Pause/Stop/Programming, etc. | - | ||||
Flow Chart | Compiled According to Furnace Structure or Product Process Flow | ||||
Temperature Curve Programming | Touch Operation, 30 Segments per Curve | ||||
Temperature Curve Storage Capacity | Unlimited (Each Curve Can Be Named in Chinese/English) | ||||
Real-time Status Display | Running Curve Name, Running Segment Number, Segment Time, Segment Running Time, Digital Temperature, Real-time Curve, Power Output Percentage | ||||
Start from Selected Segment (Cross-segment Start) | Touch Operation | ||||
Curve Measuring Range | Adjustable | ||||
Historical Curve (Graphic & Text) | Approximately 30 Months of Storage | ||||
Data Report (EXCEL) | Approximately 30 Months of Storage, Multi-point Simultaneous Display (USB Flash Drive Expandable) | ||||
Storage Interval for Historical Curves & Reports | Adjustable 1s-3600s, Multi-point Simultaneous Display (USB Flash Drive Expandable) | ||||
Alarm Indication | Color Change (Red) | ||||
Alarm Information Language | Chinese Display (Alarm Time & Event Description in Chinese) | ||||
Data Export Interface | USB | ||||
Printer Interface | Parallel Port | ||||
Touch Screen Operation Protection | Password Setting (Unauthorized Operation Prohibited Without Password) | ||||
Communication Port | RS485 | ||||
Heating Rate | Adjustable from 1℃/h to 40℃/min | ||||
Heating Element | Silicon Carbide Rod | Silicon Carbide Rod | 1800-type Molybdenum Disilicide Rod | 1800-type Molybdenum Disilicide Rod | 1900-type Molybdenum Disilicide Rod/Tungsten Wire/Graphite |
Installation Position & Method of Heating Element | Vertically Installed Around the Furnace Chamber | Vertically Installed Around the Furnace Chamber | Vertically Installed Around the Furnace Chamber | Vertically Installed Around the Furnace Chamber | Vertically Installed Around the Furnace Chamber |
Refractory Material | High-purity Alumina Zirconium-containing Fiber Board | High-purity Alumina Zirconium-containing Fiber Board | Imported High-purity Alumina Fiber Board | Imported Morgan Lightweight Material | Imported High-purity Morgan Lightweight Material |
Material Loading Table Lifting | Electric Lifting, Can Stop at Any Point During Lifting | ||||
Cooling Structure | Double-layer Furnace Shell, Air-cooled | ||||
Furnace Body Temperature | ≤45℃ | ||||
Computer Interface | RS485, RS232, USB | ||||
Warranty Scope & Period | Free Warranty for Furnace Body (1 Year), Heating Elements Not Covered | ||||
Random Spare Parts | 2 Pcs of Heating Elements, 2 Sets of Rod Holders, 1 Pc of Instruction Manual, 1 Pc of Qualification Certificate, 1 Pc of Furnace Door Insulation Brick, 1 Pc of Crucible Tongs, 1 Pair of High-temperature Gloves | ||||
