Using dual-regulated frequency and power control technology to deliver fast, stable, and energy-efficient heating, ideal for continuous-duty and high-precision industrial applications.
The Series is a split-type, intelligent high-frequency induction heating system designed for demanding industrial heating applications. Powered by dual-regulated IGBT/MOSFET frequency and power control, the system ensures automatic frequency tracking, precise temperature control, and 100% continuous duty operation.

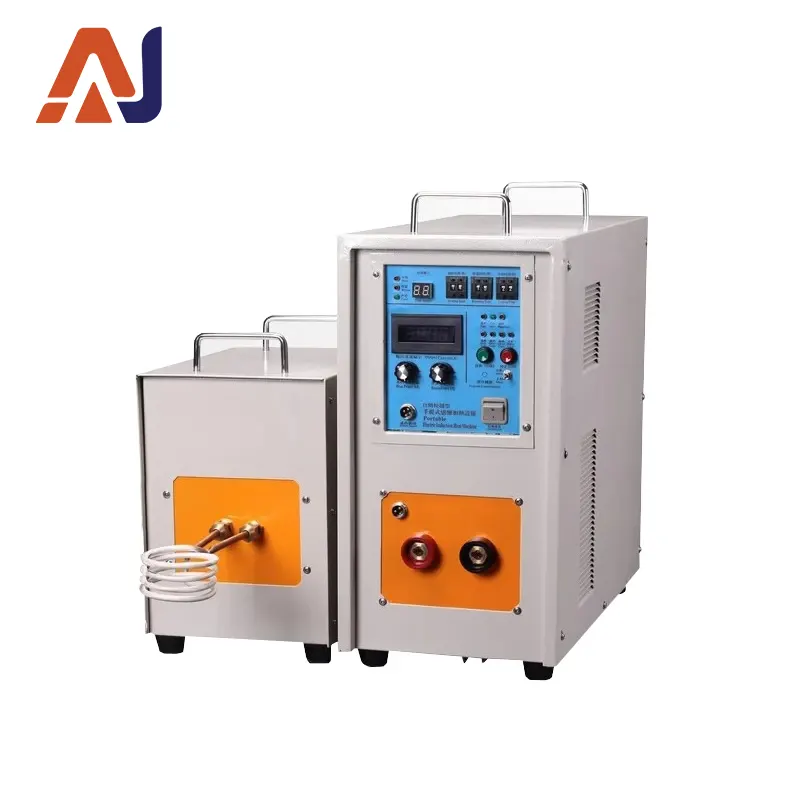

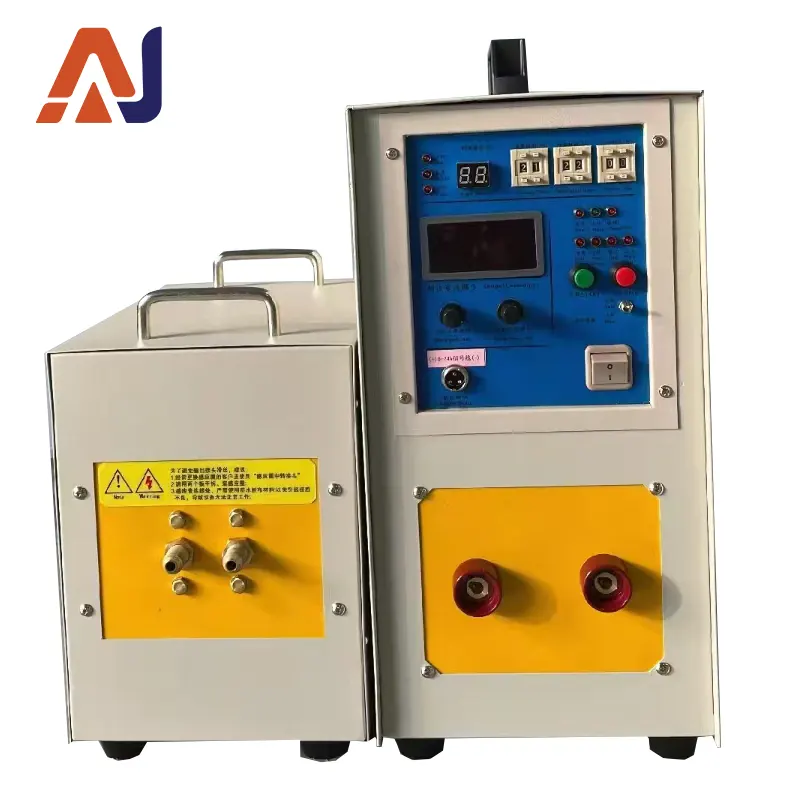

Its modular (split) configuration separates the power supply unit and heating unit, allowing flexible installation, easier maintenance, and higher adaptability to various process layouts.
| Component | Description |
|---|---|
| Power Supply Unit | Equipped with high-efficiency IGBT inverter modules (45–160 kW) for stable energy delivery. |
| Heating Unit (Inductor) | Water-cooled inductor with optimized coil design for rapid, uniform heating. |
| Control Panel | User-friendly interface with digital display, auto-tuning, power/time adjustment. |
| Auxiliary Cabinet | Includes control logic, safety interlocks, water circuit, and external IO interface. |
| Feature | Benefit |
|---|---|
| Split Structure | Easier installation, reduced thermal interference, flexible positioning. |
| IGBT-Based Inverter Tech | Fast heating, high efficiency (>95%), stable performance even at full load. |
| 100% Duty Cycle | Supports 24/7 industrial operation without overheating or power drops. |
| Smart Self-Control System | Auto-tuning for frequency & power, real-time monitoring, plug-and-play usability. |
| High Safety Standards | No open flames, low-voltage heating coil, multi-layer protection (overheat, water, etc.). |
| Water Cooling System | Adjustable pressure & flow rate for enhanced cooling and longer component life. |
Model | AJ-45KW-B | AJ-60KW-B | AJ-90KW-B | AJ-120KW-B | AJ-160KW-B |
|---|---|---|---|---|---|
Input Voltage | 3-phase 380V / 50–60Hz (standard) | ||||
Output Power | 45 kVA | 60 kVA | 90 kVA | 120 kVA | 160 kVA |
Frequency Range | 30–80 kHz (auto-tracking) | ||||
Max Input Power | 50 kVA | 66 kVA | 99 kVA | 132 kVA | 176 kVA |
Cooling Pressure | 0.3–0.6 MPa (adjustable per model) | ||||
Duty Cycle | 100% @30°C continuous | ||||
Main Unit Size | See table below | ||||
Weight | 64–135 kg (varies by model) | ||||
Cable Length | 2–6 meters (customizable) | ||||
| Unit | Dimensions (mm) |
|---|---|
| AJ-45KW-B Main | 550×240×355 |
| AJ-60KW-B Main | 650×285×510 |
| AJ-90KW-B Main | 680×370×600 |
| AJ-120/160 Main | 690×370×640 |
| Auxiliary Unit | 470–900 × 265–500 × 430–600 |
