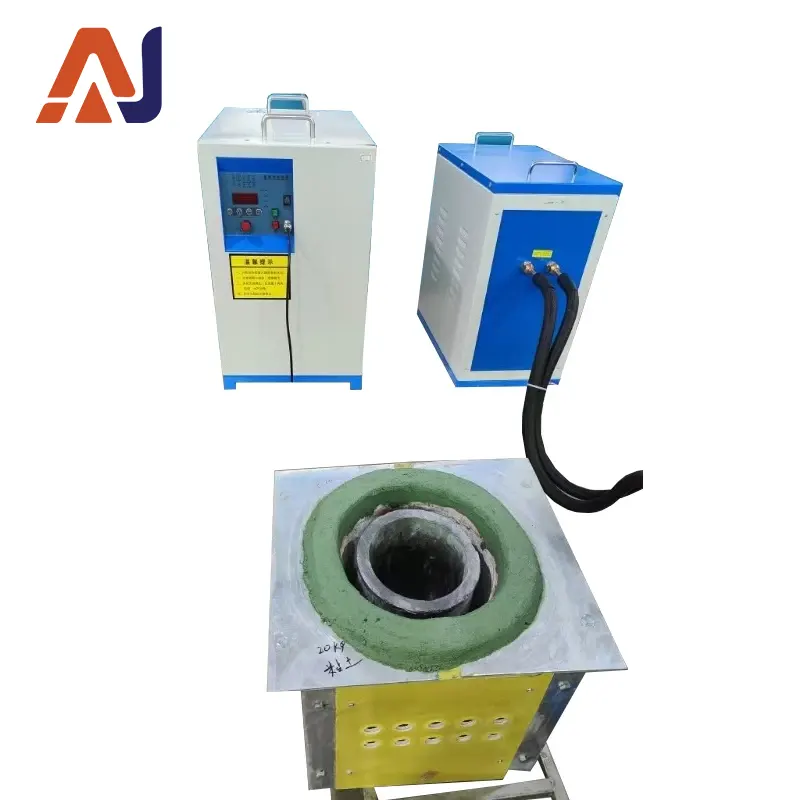

The-25KW high-frequency induction heating machine is designed for fast, precise melting of platinum and other precious metals. Featuring split-type structure and self-controlled dual regulation (power + frequency), it ensures safe, stable, and efficient casting operations.
The Series 25kW High-Frequency Induction Heating Machine is a precision-engineered solution designed specifically for platinum, palladium, and other high-melting-point metal casting. It adopts a split-type structure with automatic dual-regulation control for frequency and power, ensuring high reliability, fast melting, and precise temperature management during the casting of precious alloys and materials.
Ideal for:
| Item | Specification |
|---|---|
| Model | AJ-25KW-HF-S |
| Input Voltage | Three-phase 380V / 50–60Hz |
| Output Power | 25kW |
| Frequency Range | 50 – 150kHz |
| Max Input Power | 28kVA |
| Heating Capacity | ~500g–2kg (platinum or similar high-temp metals) |
| Cooling Water Flow | ≥ 6L/min, 0.2–0.3MPa |
| Duty Cycle | 100% @ 30°C (continuous operation) |
| Main Unit Dimensions | 550×280×480mm |
| Control Unit Dimensions | 430×250×430mm |
| Cable Length | 2–6m (customizable) |
| Net Weight | ~58kg |
Precision Dual-Control System
Optimized for Platinum Casting
Compact Split-Type Structure
High Reliability & Safety
