High-Temperature Electric Resistance Heating Furnace Laboratory Furnace Small XA Chamber Furnace

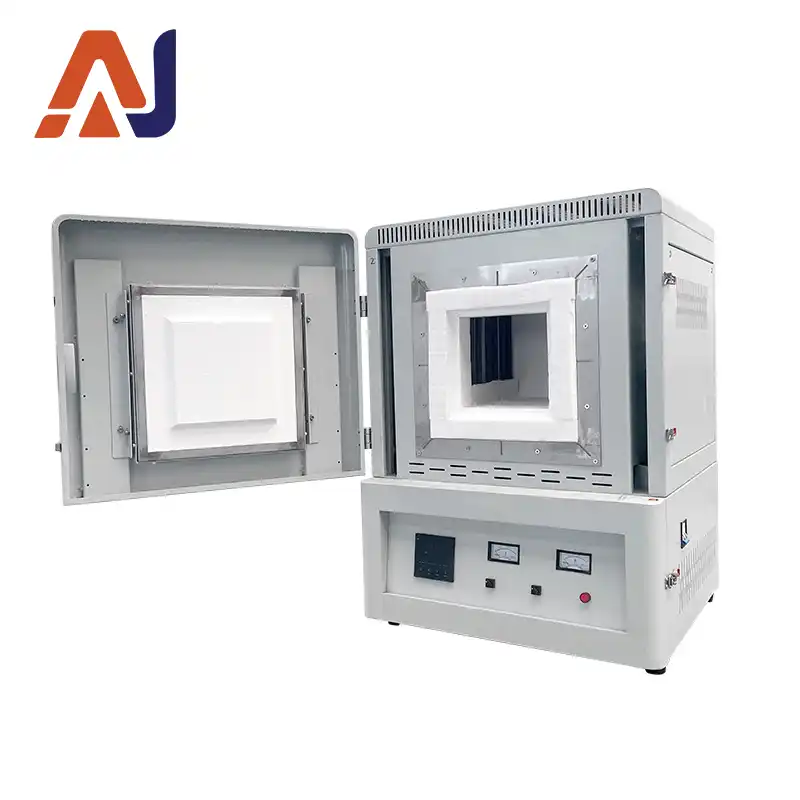

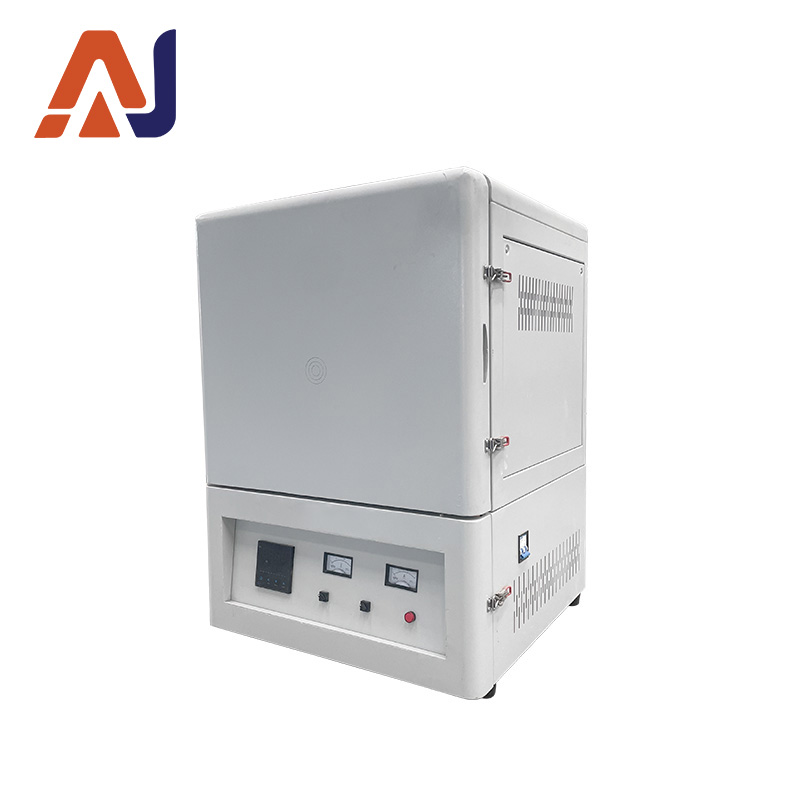

The AJ-XA series high-temperature furnace, as shown in the figure, integrates the control system and the furnace chamber into one unit. The furnace lining is made of vacuum-formed high-purity alumina lightweight material.

It uses high-temperature electric heating elements for heating; it is a specialized device developed for laboratories in higher education institutions and research institutes, as well as industrial and mining enterprises, for sintering, melting, analyzing, and producing ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, special materials, building materials, metals, non-metals, and other chemical compound materials.

The control panel is equipped with an intelligent temperature regulator, control power switch, main heating start/stop buttons, voltage and current meters, a computer interface, and an observation port/gas inlet, so that the operating status of the system can be observed at any time. This product adopts a reliable integrated circuit, provides a good working environment, and is resistant to interference. At maximum temperature, the outer shell temperature of the furnace body is ≤45°C, greatly improving the working environment. With microcomputer program control, programmable curves, fully automatic heating/cooling, and the ability to modify temperature control parameters and programs during operation, it is flexible, convenient, and simple to operate.
