1600℃ Electric Furnace,50KW/380V Power Supply, Long-Term Operating Temperature 1550℃, Three-Side Heating with U-Type Molybdenum Disilicide Rods, Temperature Control Accuracy ±1℃, Three-Layer Thermal Insulation with Over 80% Energy Saving, 30-Segment Programmed Temperature Control, Suitable for High-Temperature Sintering of Materials in Multiple Fields, Safe and Stable
.webp)
1.webp)
2.webp)
3.webp)

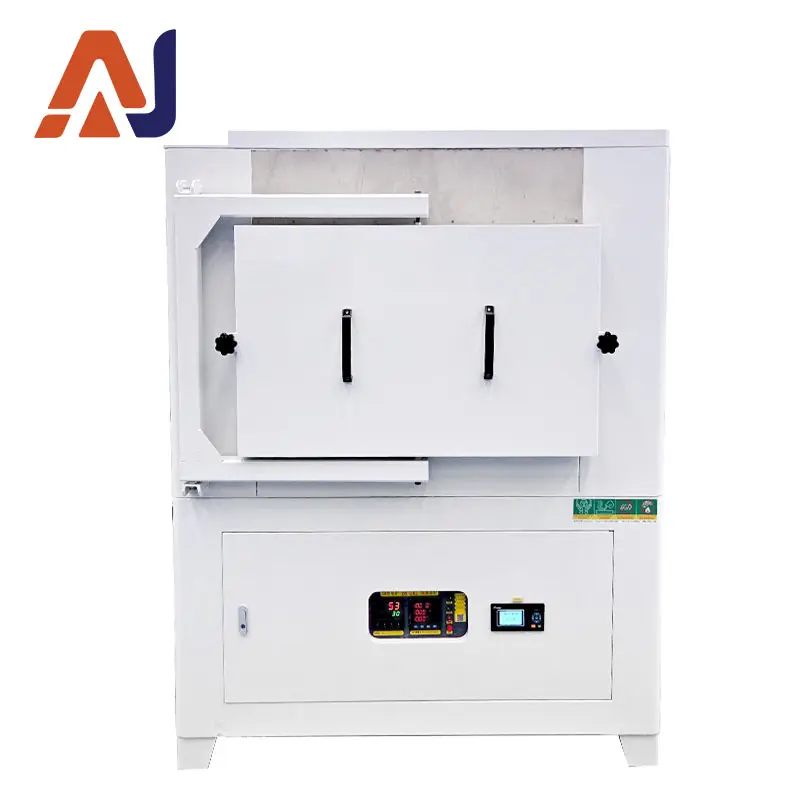

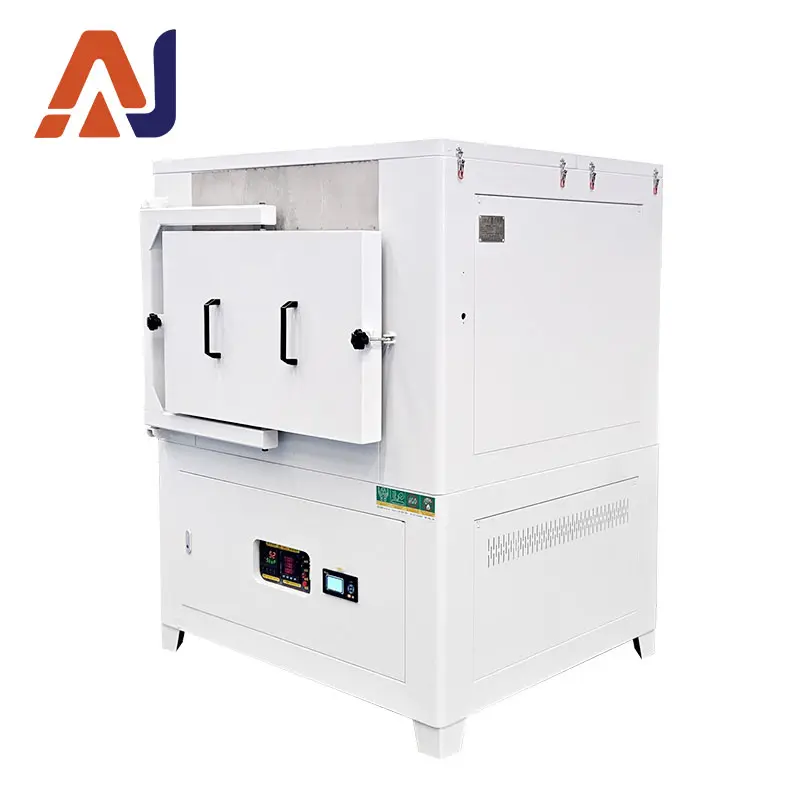

AJ-SS Series High-Temperature Precision Box-Type Electric Furnace integrates the control system and furnace chamber into one unit. The furnace lining is made of imported high-purity vacuum-formed alumina fiber lightweight aggregate board.
Heated by resistance wires or molybdenum disilicide rods, it is a specialized equipment developed for laboratories of colleges and universities, scientific research institutes, as well as industrial and mining enterprises. It is designed for the sintering, melting, analysis, and production of ceramics, metallurgical, electronic, glass, chemical, mechanical, refractory materials, new material development, special materials, building materials, metals, non-metals, and other compound materials.
The control panel is equipped with an intelligent temperature controller, control power switch, main heating start/stop buttons, voltage and current meters, and computer interface for real-time monitoring of the system's operating status. Adopting reliable integrated circuits, the product ensures a stable working environment and strong anti-interference capability. When operating at the maximum temperature, the furnace shell temperature is ≤ ambient temperature + 25℃, which significantly improves the working environment. Featuring microcomputer program control and programmable temperature curves, it enables automatic heating and cooling. Temperature control parameters and programs can be modified during operation, offering flexibility, convenience, and ease of use.
| Category | 1600℃ |
| Model | AJ-1600LB |
| Specification (Furnace Chamber Dimensions + Power) | Furnace Chamber Dimensions (Depth × Width × Height): 800×800×400 mm; Power: 50kW |
| Power Supply (AC) | 380V |
| Long-term Operating Temperature | 1550℃ (for long-term use) |
| Control Range | 80-1600℃ |
| Temperature Measuring Element | Type B Platinum-Rhodium-Platinum Thermocouple, measuring range: 0-1600℃ |

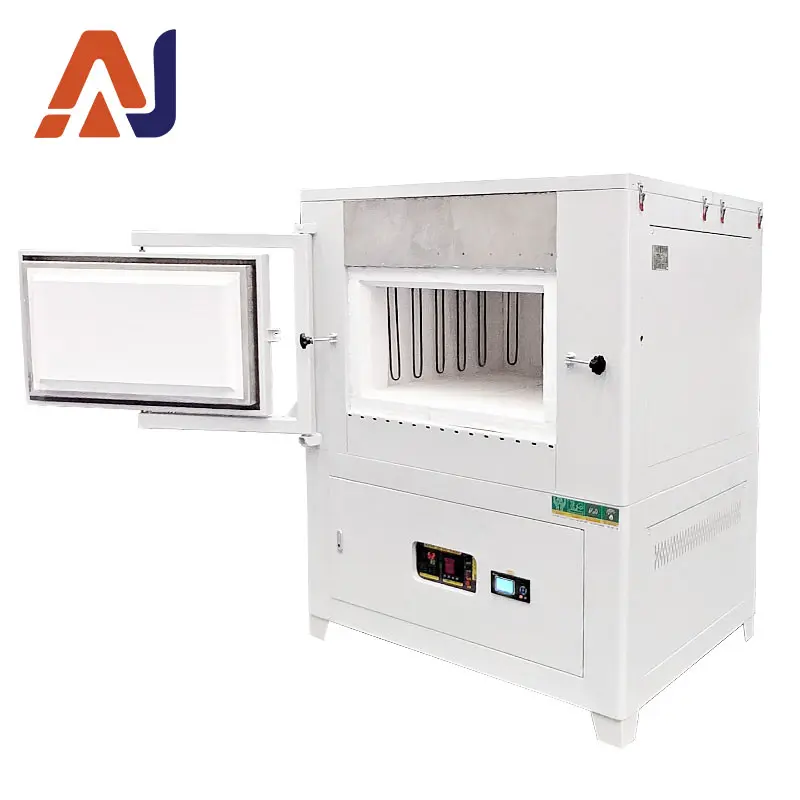

| Heating Element Installation Position | Vertically installed on both sides and the rear side inside the furnace chamber |
| Temperature Control Precision | ±1℃ (integrated circuit control, no overshoot) |
| Temperature Control Point | 1 |
| Recorder | Equipped with 1 paperless recorder |
| Furnace Temperature Uniformity | ±6℃ (varies by furnace chamber size) |
| Heating Rate | 1. Below 1000℃: ≤15℃/min; |
| 2. 1000℃-1400℃: ≤10℃/min; | |
| 3. Above 1400℃: ≤5℃/min | |
| Heating Elements | U-shaped Silicon-Molybdenum Rods |
| Furnace Body | Processed by CNC machine tools, undergoing polishing, grinding, pickling, phosphating, plastic powder spraying, high-temperature baking and other processes. Dual-color matching, novel and attractive appearance, with advantages of oxidation resistance, acid and alkali resistance, corrosion resistance, high-temperature resistance, and easy cleaning. |
| Furnace Door Opening Mode | Side opening |
| Refractory Material | Furnace lining made of high-purity alumina fiber and vacuum-formed lightweight fiber board |
| Insulation Materials | Three-layer insulation structure: alumina fiber cotton, alumina fiber board, polycrystalline alumina fiber board. Energy-saving effect is more than 80% higher than that of old-fashioned electric furnaces. |
| Furnace Body Surface Temperature | ＜45℃ during long-term continuous operation |
| Protection Functions | 1. Adopts an integrated module control unit with accurate control precision, designed with dual-loop control and dual-loop protection. It provides protection against overshoot, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start; |
| 2. Equipped with over-temperature alarm and automatic power-off function to prevent overheating. | |
| Display Parameters | Temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc. |
| Buttons | Imported buttons with service life exceeding 100,000 times, equipped with LED indicators |
| Temperature Curve Setting | Uses an intelligent temperature controller |
| Multiple Curve Input | 30-segment program control function, which can be set as follows: 1 curve with 30 segments, 2 curves with 14 segments each, 3 curves with 9 segments each, 5 curves with 5 segments each; multiple curves can be input simultaneously and called arbitrarily during use. |
| Spare Parts | 2 heating elements, 2 sets of rod fixtures, 1 crucible tong, 1 pair of high-temperature gloves |
| Warranty Scope & Period | The electric furnace comes with a 1-year free warranty; heating elements are not covered |
| Notes | 1. To ensure the service life of the electric furnace, the recommended maximum heating and cooling rate is 10-20℃/min (excessively fast heating will shorten the service life of heating elements); |
| 2. This box-type furnace has no vacuum sealing structure, and flammable and explosive gases are strictly prohibited; | |
| 3. Minor cracks may appear in the furnace chamber after long-term use, which is normal and does not affect operation. They can be repaired with alumina coating; | |
| 4. Introduction of corrosive gases is not recommended. If strong corrosive gases (such as S, Na) need to be used, please inform us in advance for special furnace chamber treatment; | |
| 5. High-temperature solutions are prohibited from leaking onto the furnace bottom. Use a base plate or alumina powder for isolation; | |
| 6. The equipment should be placed in a well-ventilated and dry environment. | |
| Shipping Terms | 1. Free door-to-door delivery within urban areas in China; |
| 2. We are responsible for any damage to the electric furnace during transportation; | |
| 3. Logistics methods: Domestic transportation by automobile or railway; special vehicle transportation for short distances; foreign trade export by ship or air. |
