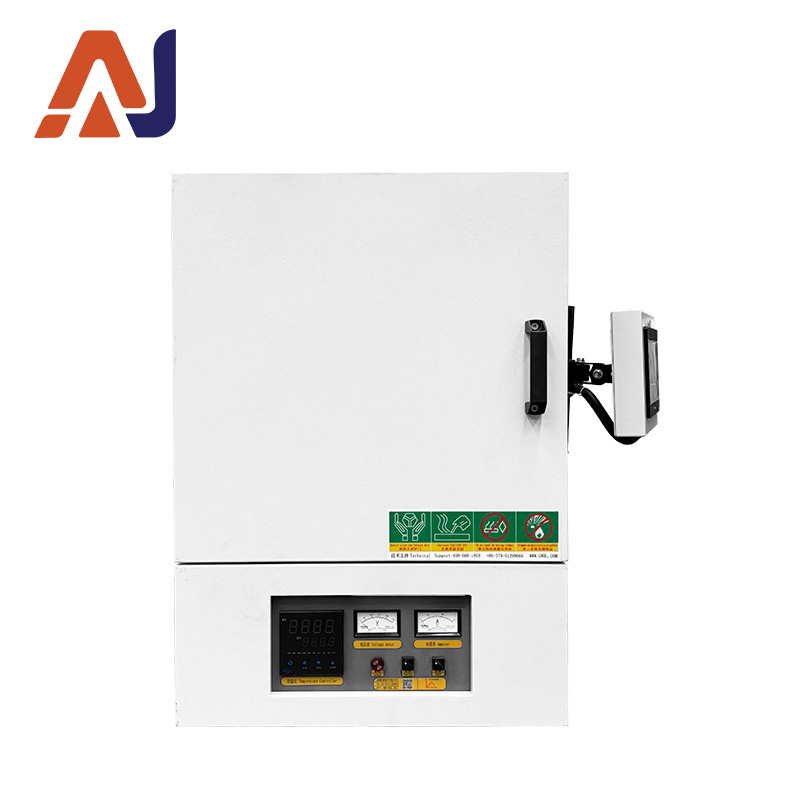

1200℃ small touch screen box furnace,180°side opening,±1℃ accuracy,3-side heating.Double air cooling,alumina lining,50-segment program control for lab sintering & annealing.
.png)
1.jpg)
2.jpg)
3.jpg)
1. Precise Temperature Control & Flexible Curves Smart temperature controller supports PID/APID/MPT regulation with ±1℃ accuracy. 50-segment program control allows multiple curves to be stored and called on demand, delivering smooth, overshoot-free heating/cooling ramps.
2. Fast Heating & Even Distribution Three-side heating (two sides + bottom) with high-temperature alloy resistance wire achieves a max heating rate of 40℃/min for uniform temperature distribution.
3. Excellent Insulation & Safe Surface Vacuum-formed high-purity alumina lightweight lining offers low heat storage and resistance to thermal shock without cracking or shedding. Shell temperature stays below 45℃, so the surface remains cool to the touch even after long operation.
4. Comprehensive Safety Protection Integrated modular dual-loop control and protection covers over-temperature, over-current, over-voltage, phase loss and soft start. The main heating circuit automatically cuts off when the door opens at high temperature, eliminating electric shock risk.

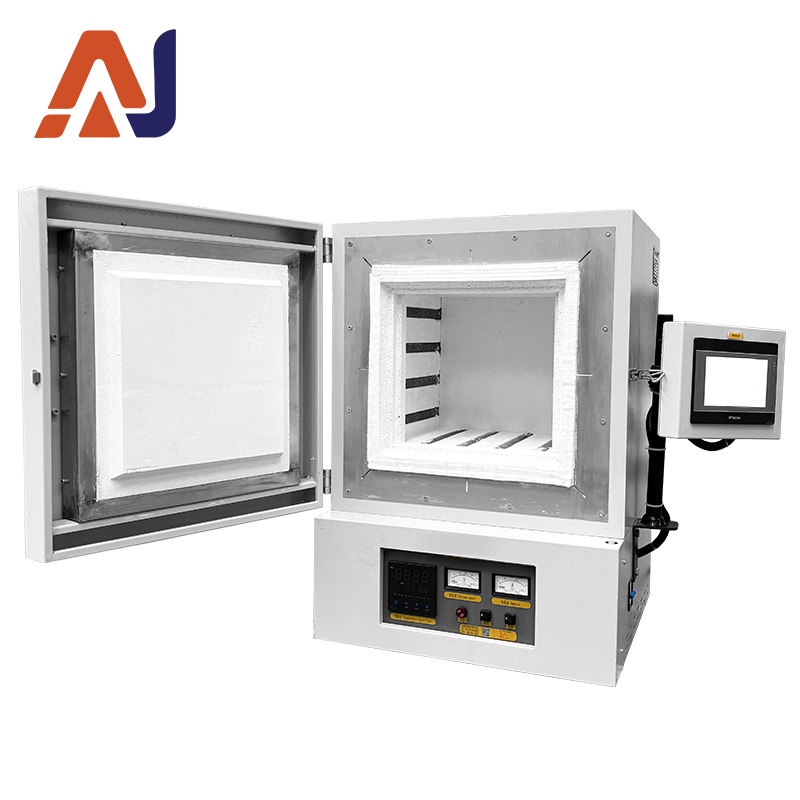

5. Robust Structure & Long Service Life Air-cooled double-layer carbon steel shell circulates cool air to protect the heating element terminals from high-temperature oxidation. The 180° side-opening door with elastic latch ensures reliable sealing and self-adapts to thermal expansion.

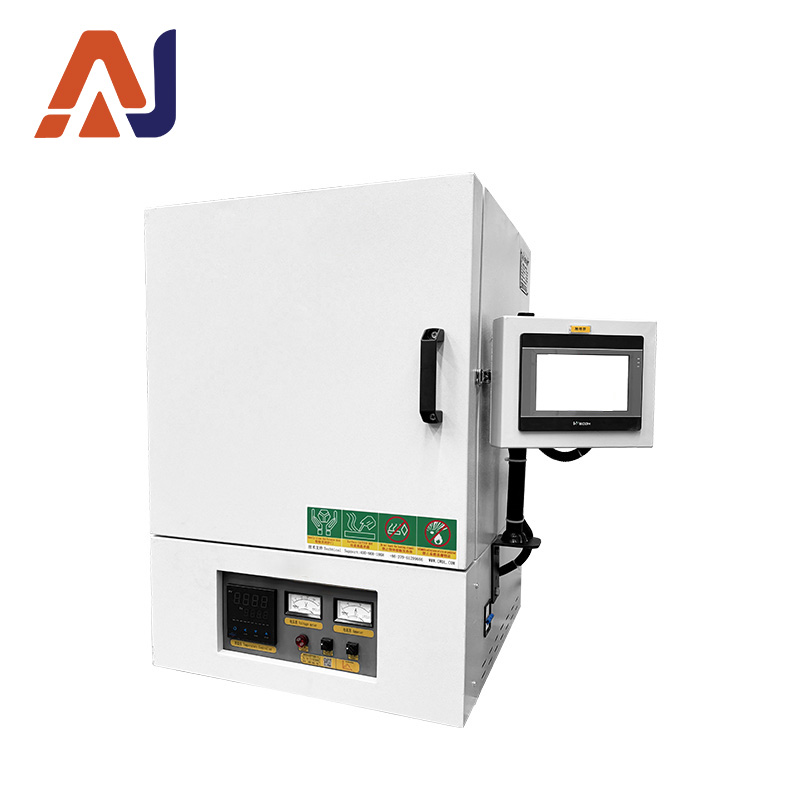

6. Simple & User-Friendly Operation Intuitive touchscreen display paired with dual knobs (main power / heating power) for clear operation. Auto-tuning and self-learning functions eliminate complex setup — ready to use out of the box.
| Item | 1200℃ | 1400℃ | 1600℃ | 1700℃ | 1800℃ | 1900℃ |
|---|---|---|---|---|---|---|
| Max Operating Temperature | 1200℃ | 1400℃ | 1600℃ | 1700℃ | 1800℃ | 1900℃ |
| Long-term Operating Temperature | 1150℃ | 1350℃ | 1550℃ | 1680℃ | 1780℃ | 1850℃ |
| Temperature Control Range | 100-1200℃ | 100-1400℃ | 100-1600℃ | 100-1700℃ | 100-1800℃ | 100-1900℃ |
| Temperature Control Accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temperature Sensor | K-type thermocouple | S-type thermocouple | B-type thermocouple | B-type thermocouple | B-type thermocouple | Thermocouple + Optical Fiber |
| Heating Element Material | High-temperature alloy resistance wire | Silicon carbon rod | Molybdenum disilicide rod | 1800 grade MoSi₂ rod | 1850 grade MoSi₂ rod | 1900 grade MoSi₂ rod |
| Heating Element Installation | 3-sided heating (both sides + bottom) | Top & bottom / both sides | Both sides | Both sides | Both sides | Both sides |
| Heating Rate | Max heating rate: 40℃/min (non-linear) | |||||
| Furnace Body Structure & Material | The furnace adopts advanced air-cooled double-layer carbon steel structure. Efficient air cooling guide baffles realize cold air circulation around shell, cool the conductive strips of heating elements before exhaust to prevent high-temperature oxidation and guarantee good working environment. | |||||
| Door Opening Method | Axial 180° side opening door. The side-mounted elastic lock can fasten the door tightly. The elastic structure absorbs thermal expansion of refractory materials, allowing free expansion & contraction and reliable sealing. | |||||
| Refractory Insulation Material | Furnace liner made of vacuum molded high-purity lightweight alumina material. Features high working temp, low heat storage, good thermal shock resistance, no cracking or slag falling, excellent thermal insulation. | |||||
| Shell Temperature | Shell temperature ＜45℃ | |||||
| Safety Protection | Integrated modular control unit with dual-loop control and dual-loop protection. Protection functions: overshoot, under-adjustment, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, soft start. | |||||
| Power Cut-off on Door Opening | Main heating circuit will be cut off automatically when opening door under high temperature to avoid electric shock risk during hot sample taking. | |||||
| Safety Temperature Control | Closed-loop SCR module trigger control, phase-shift trigger or zero-crossing trigger. Continuously adjustable output voltage/current/power, constant voltage / constant current / constant power available. Current as inner loop, voltage as outer loop. When sudden load or over-limit current occurs, it limits output current within rated range to protect regulator and heating element against heavy current & voltage surge, achieving reliable control and precision. | |||||
| Temperature Curve Setting | Intelligent temperature controller with standard PID, APID, MPT and other regulation modes. Auto-tuning & self-learning, no overshoot or undershoot. 30-segment program control, arbitrary ramp rate for heating & cooling. Support jump(cycle), run, pause, stop; program can be modified anytime during running. AI curve fitting algorithm for smooth temperature curve. | |||||
| Program Segments | 50-segment program control. Options:1 curve with 50 segments / 2 curves ×28 segments each /3 curves ×15 segments each /5 curves ×9 segments each. Multiple curves can be stored and called freely. | |||||
| Panel Buttons | Two buttons/knobs: Main power button/knob, heating chamber switch button/knob. | |||||
