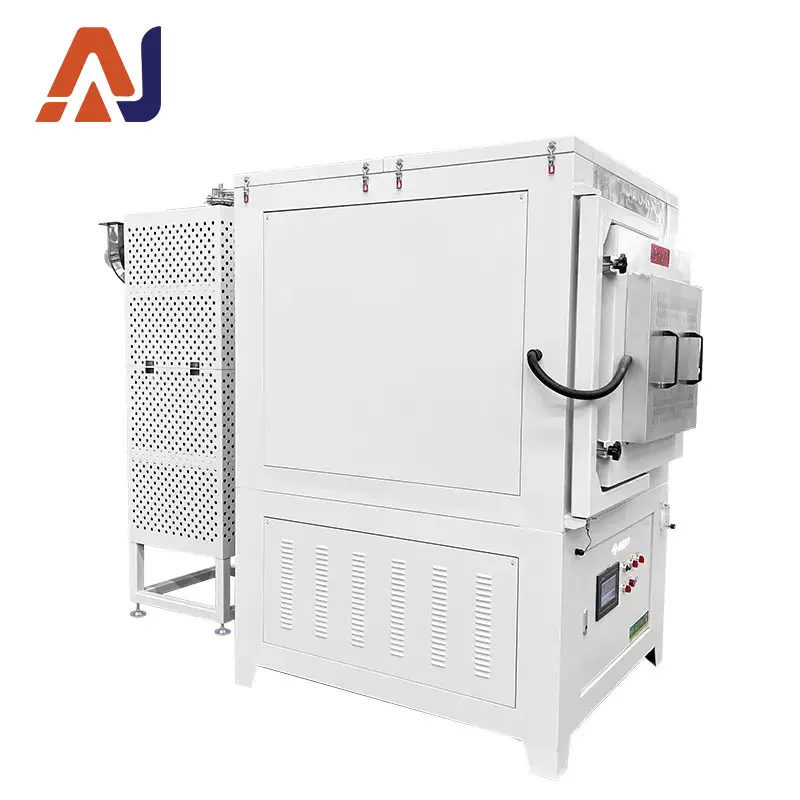

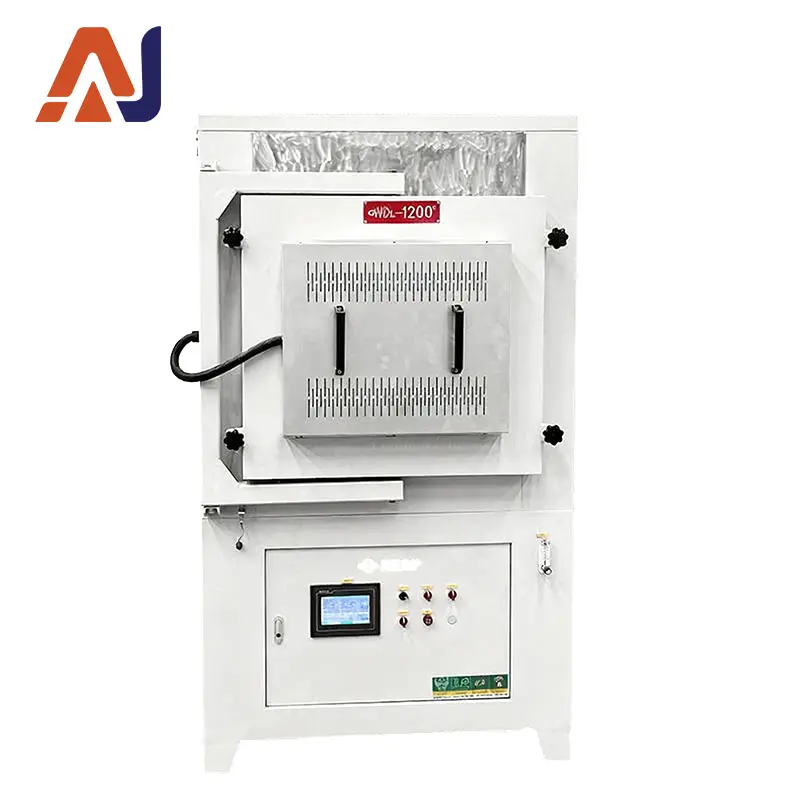

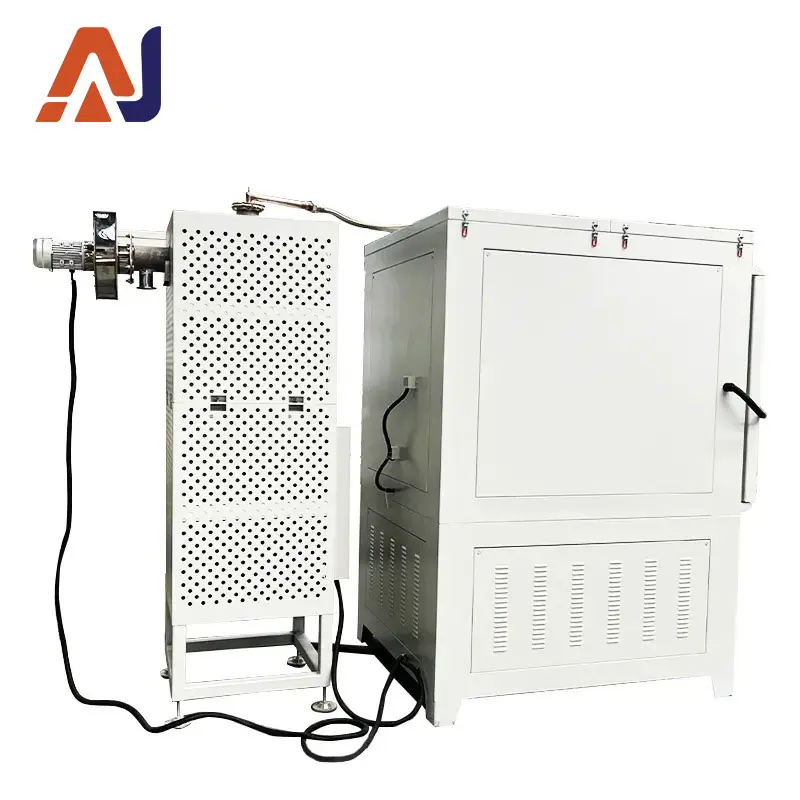

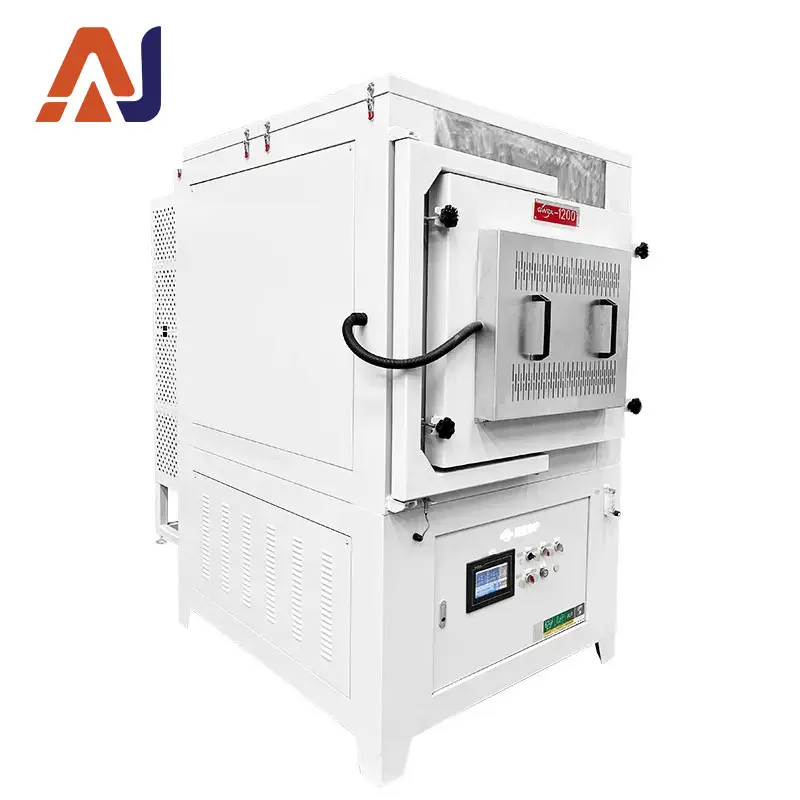

1200°C five-sided heating box-type resistance furnace with high temperature control accuracy. The furnace body adopts an air-cooled double-layer structure, keeping the outer shell temperature low. Equipped with multiple protection functions and programmable temperature control, it is suitable for ceramics, electronic materials, powder materials, and other applications requiring uniform heating and exhaust gas treatment.
| Item / Model Temperature | 1200°C | 1400°C | 1600°C | 1700°C | 1800°C | 1900°C |
| Maximum Operating Temperature | 1200°C | 1400°C | 1600°C | 1700°C | 1800°C | 1900°C |
| Long-term Service Temperature | 1150°C | 1350°C | 1550°C | 1680°C | 1780°C | 1850°C |
| Temperature Control Range | 100-1200°C | 100-1400°C | 100-1600°C | 100-1700°C | 100-1800°C | 100-1900°C |
| Temperature Control Accuracy | ±1°C | ±1°C | ±1°C | ±1°C | ±1°C | ±1°C |
| Temperature Sensor | K-type | S-type | B-type | B-type | B-type | Thermocouple + Fiber Optic |
| Heating Element Material | High-Temp Alloy Resistance Wire | Silicon Carbide (SiC) Rods | Molybdenum Disilicide (MoSi₂) Rods | 1800-type MoSi₂ Rods | 1850-type MoSi₂ Rods | 1900-type MoSi₂ Rods |
| Heating Element Position | Three-sided heating: Both sides + Bottom | Top/Bottom or Both Sides | Both Sides | Both Sides | Both Sides | Both Sides |
| Heating Rate | Max. heating rate: 40°C/min (non-linear) | |||||
| Furnace Structure & Material | Air-cooled double-layer carbon steel structure. Effective air-guiding baffles enable overall cold-air circulation inside the furnace shell, cooling the heating element terminals before exhausting. This prevents high-temperature oxidation of the terminals and ensures a good working environment. | |||||

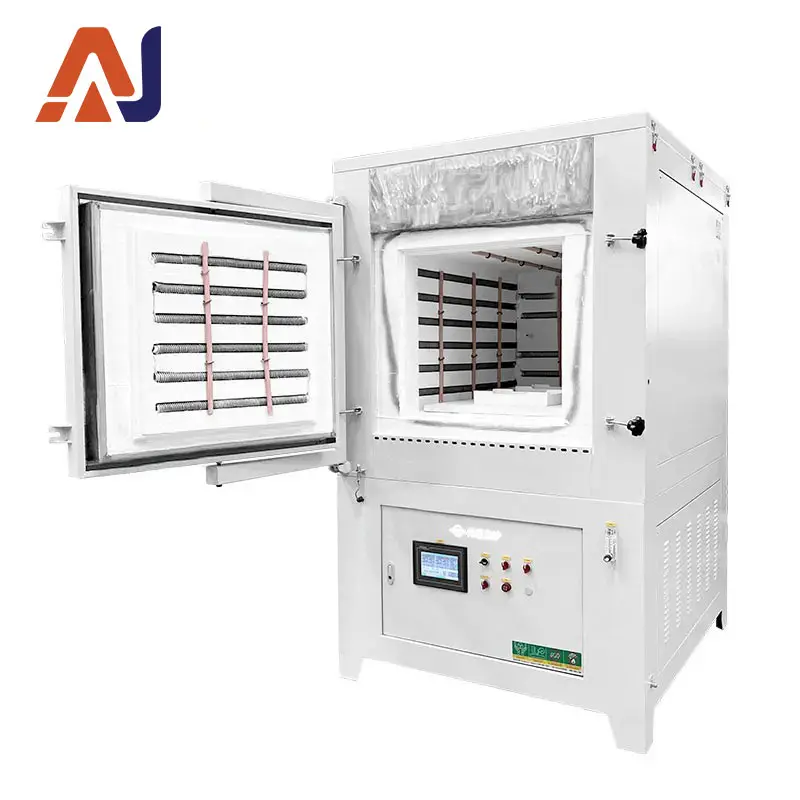

| Door Opening | Axial 180° side-opening door. Equipped with an elastic lock on the side for effective latching. The lock's elasticity accommodates refractory expansion, allowing for free thermal expansion/contraction of the refractory material and ensuring an effective seal. | |||||
| Refractory & Insulation | Vacuum-formed high-purity lightweight alumina composite lining. Features high service temperature, low heat storage, excellent resistance to thermal shock (no cracking, no spalling), and superior insulation properties. | |||||
| External Shell Temperature | < 45°C | |||||
| Safety Protection | Integrated modular control unit with dual-loop control and protection. Includes: Overshoot, Overrun, Undershoot, Thermocouple Break, Phase Loss, Overvoltage, Overcurrent, Overtemperature, Current Feedback, and Soft Start protection. | |||||
| Power Cut on Door Open | Safety interlock: The main heating circuit is automatically disconnected when the door is opened during high-temperature operation, significantly reducing the risk of electric shock during material handling. | |||||
| Safety Temperature Control | Closed-loop thyristor (SCR) module trigger control (phase-shift or zero-crossing). Output voltage, current, and power are continuously adjustable with constant voltage, current, or power operation. Dual-loop regulation (inner current loop + outer voltage loop): Limits output current to the rated range during sudden load changes or overcurrent conditions, protecting heating elements from excessive current/voltage surges and ensuring safe, reliable, and precise control. | |||||
| Temperature Profile Setting | Intelligent temperature controller with multiple control modes: standard PID, AI adjustment (APID), or MPT. Features self-tuning/self-learning with no overshoot/undershoot. 30-segment program control for any heating/cooling slope. Supports commands like jump (loop), run, pause, stop, and allows on-the-fly program modification. AI algorithm with curve-fitting ensures smooth profile control. | |||||
| Profile Segments | 50-segment program control. Supports: 1 curve (50 seg.), 2 curves (28 seg. each), 3 curves (15 seg. each), 5 curves (9 seg. each). Multiple curves can be stored and recalled as needed. | |||||
| Front Panel Buttons | Two buttons/knobs: Main Power On/Off, Heating Chamber On/Off. | |||||
| Standard Accessories | One pair of crucible tongs, one pair of high-temperature gloves, one furnace floor plate. | |||||
