As a high-temperature heat treatment equipment adopting double-station alternate operation, the double-platform trolley furnace features multi-zone temperature control with uniformity of ±5℃ and 30-segment program temperature control. It uses ceramic fiber for heat preservation, saving over 30% energy. Equipped with multiple safety protections and customizable furnace chambers, it is the first choice for batch heat treatment.

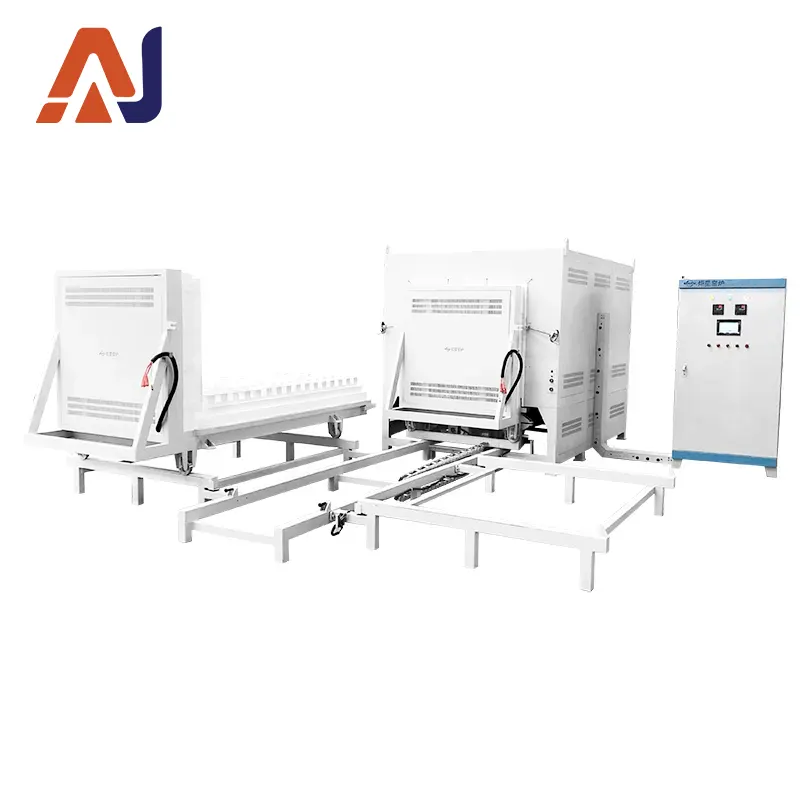

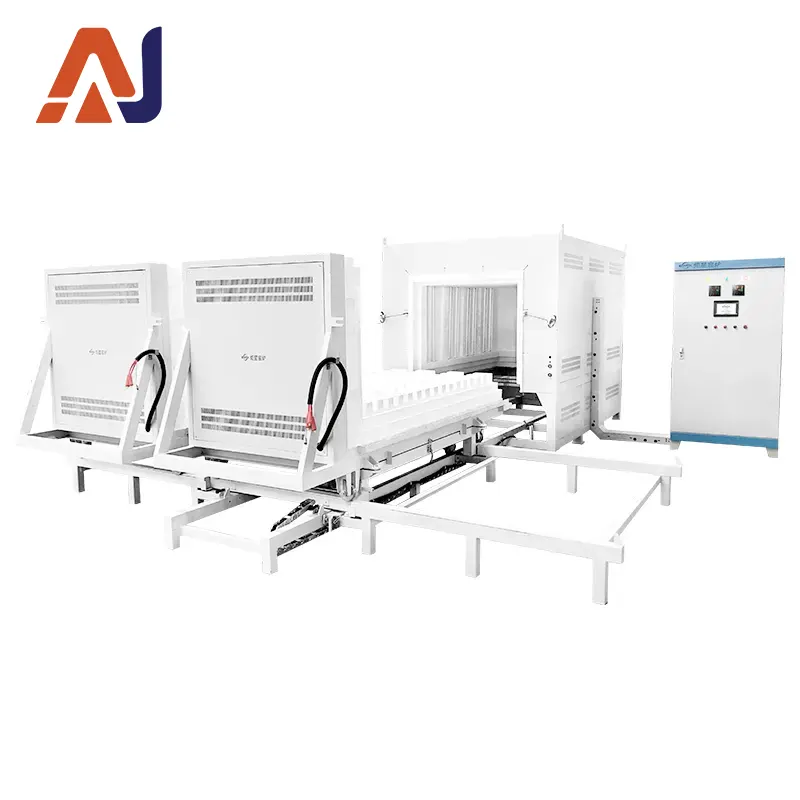

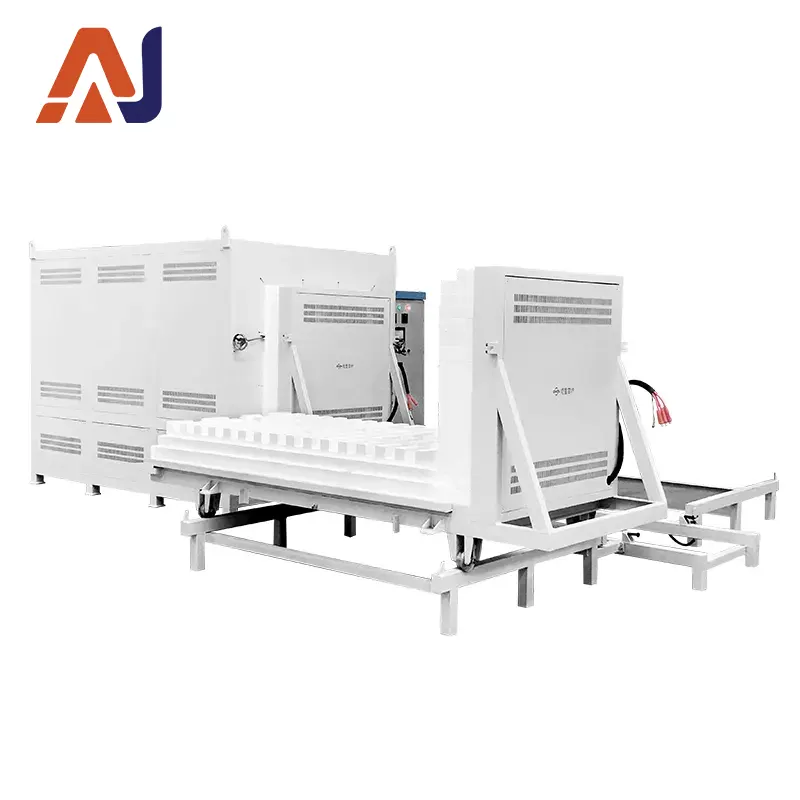

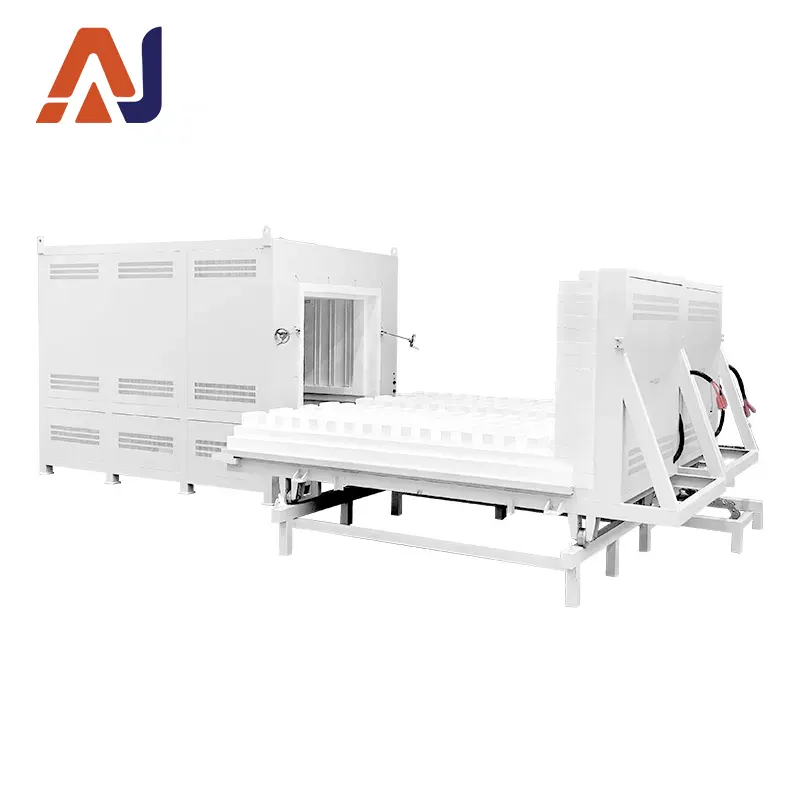

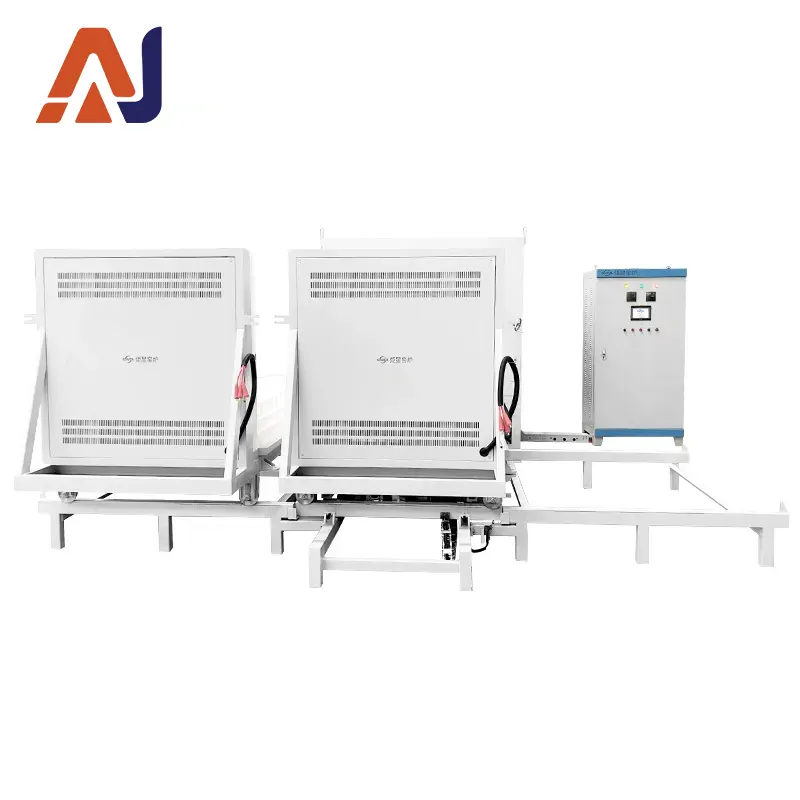

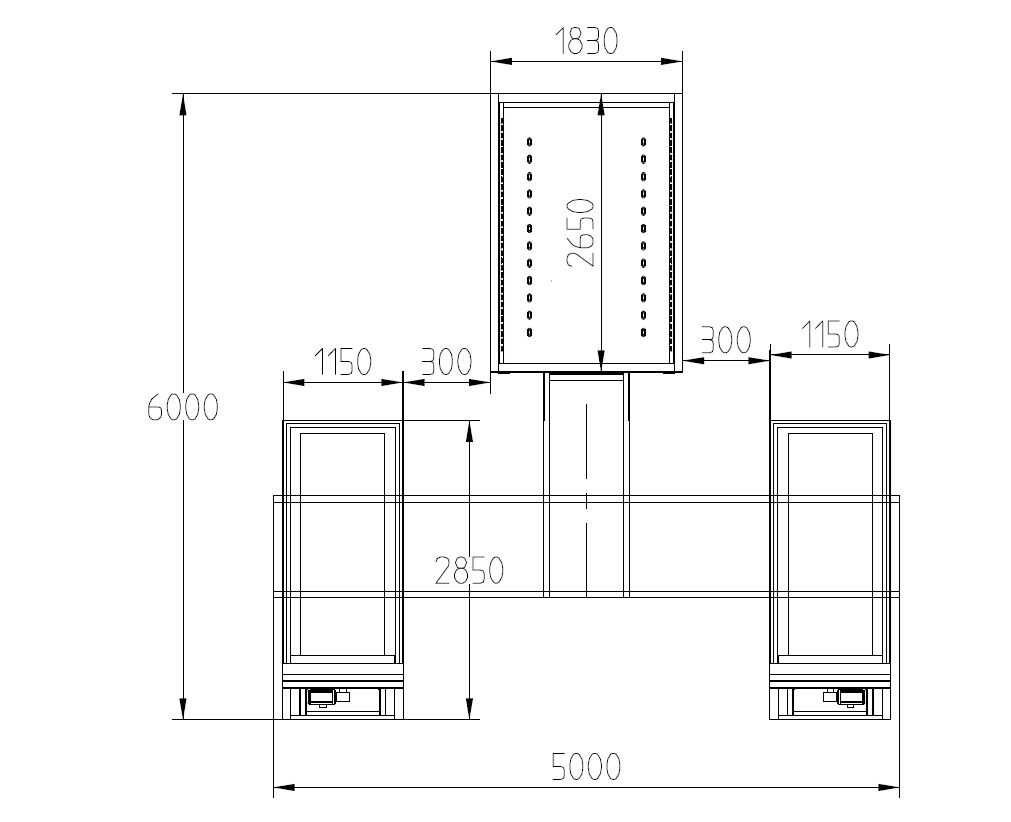

The double-platform trolley furnace is a high-efficiency, flexible high-temperature heat treatment device, specifically designed for high-volume, continuous production needs. Featuring a dual-station platform plus trolley structure, it enables alternating loading and unloading—greatly boosting production efficiency. It’s ideal for heat treatment processes like annealing, normalizing, quenching, tempering, and sintering of large workpieces (such as castings, forgings, and molds), standing out as a high-efficiency, energy-saving precision electric furnace.
 |
| Model | AJ-STCY |
| Maximum Operating Temperature | 1750℃ |
| Long-term Operating Temperature | 1700℃ |
| Control Range | 80 to 1700℃ |
| Effective Heating Zone Dimensions | Length × Width × Height: 2000×800×700mm |
| Power Supply (AC) | 380V |
| Designed Power (approx.) | 130KW |
| Installation Position of Heating Elements | Evenly distributed on both sides of the furnace chamber |
| Temperature Control Precision | ±1℃ |
| Furnace Temperature Uniformity | ±5℃ |
| Heating Rate | Freely adjustable, with a range of 20℃/min (non-linear, fastest) to 1℃/h (slowest) |
| Temperature Measuring Element | Thermocouple (Type B), measuring range 0-1820℃ |
| Dual Temperature Control | Temperature control on both sides |
| Heating Elements | 1800-type silicon molybdenum rods on the left and right sides of the furnace chamber |
| Furnace Shell Material | Processed by CNC machine tools, with processes including polishing, grinding, pickling, phosphating, plastic powder spraying, and high-temperature baking. It features a two-color design, novel and attractive appearance, and advantages such as oxidation resistance, acid and alkali resistance, corrosion resistance, high-temperature resistance, and easy cleaning. |
| Furnace Shell Color | RAL7035 |
| Furnace Body Structure | Air-cooled double-layer structure. Effective air-cooled guide partitions enable overall cold air circulation in the furnace shell, which finally cools the heating element conductive plates before being discharged, avoiding high-temperature oxidation of the conductive plates and ensuring a good working environment. |
| Furnace Door Opening Method | The furnace door and bottom are integrally designed, with an electric opening mechanism. A motor-driven reducer drives the loading platform in and out, equipped with limit switches. |
| Cooperation Between Furnace Mouth and Loading Platform Refractories | The furnace mouth and loading platform refractories adopt a stepped cross-sealing design, with angles on both upper and lower parts of the refractories. The opening angle of the loading platform increases, and gradually decreases as the platform closes. |
| Loading Platform Capacity | 1000kg |
| Loading Platform Movement | Electric mechanical |
| Refractory Materials | The furnace lining uses vacuum-formed high-purity alumina fiber lightweight plates. Positions prone to collision during material handling (furnace mouth, furnace bottom) use lightweight hollow spherical alumina plates, featuring high operating temperature, low heat storage, resistance to rapid heating/cooling, no cracking, no slag dropping, and good thermal insulation performance (energy-saving effect is over 80% compared to old-fashioned electric furnaces). |
| Insulation Materials | Three-layer insulation: high-alumina cotton, alumina blanket, and alumina fiberboard, with an energy-saving effect over 80% compared to old-fashioned electric furnaces. |
| Furnace Body Surface Temperature | ≤45℃ during long-term continuous operation |
| Protection | Adopts an integrated module control unit with accurate control precision, designed with dual-loop control and dual-loop protection, featuring overshoot, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start protection. |
| Control | Uses closed-loop thyristor module trigger control (phase-shift trigger mode). Output voltage, current, or power is continuously adjustable with constant voltage, current, or power characteristics. The current loop is the inner loop and the voltage loop is the outer loop. When the load is suddenly applied or exceeds the current limit, the output current of the voltage regulator is limited within the rated range to ensure normal operation of the output and regulator. The voltage loop also participates in regulation to maintain stable output current and voltage within the rated range, thus protecting heating elements from excessive current/voltage impact and ensuring safe, reliable control and precision. (See electric furnace video for details) |
| Display Parameters | Temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc. |
| Buttons | Imported buttons with a service life of over 100,000 times, equipped with LED indicators |
| Temperature Curve Setting | Uses an intelligent temperature controller with multiple regulation modes (standard PID, artificial intelligence adjustment APID, MPT, etc.), featuring self-tuning and self-learning functions, no overshoot/undershoot, and 30-segment program control. It supports arbitrary slope heating/cooling control, with programmable commands (jump/cycle, run, pause, stop) and allows in-operation program modification. Adopts an AI adjustment algorithm with curve fitting function for smooth curve control. (See electric furnace video for details) |
| Multiple Curve Input | 50-segment program control function |
| Random Spare Parts | 2 heating elements, 2 sets of rod tools, 1 crucible tong, 1 pair of high-temperature gloves, 1 USB data disk, 2 sets of special-shaped kiln furniture, and 1 set of flat kiln furniture. |
| Packing List | 1 electric furnace, 2 heating elements, 2 sets of rod tools, 1 crucible tong, 1 pair of high-temperature gloves, 1 instruction manual, 1 certificate of conformity, 1 acceptance report (factory inspection report), and 1 sales delivery note. |
| Shipping Information | 1. The electric furnace is packaged in three layers: wrapped in sponge paper, then with plastic film, and finally packed in a wooden case. 2. Free door-to-door delivery domestically (free delivery within urban areas). 3. We shall bear any damage incurred during transportation of the electric furnace. 4. Logistics methods: Transportation by car, railway, ship (for export), or air (for export). For nearby destinations, our company dispatches a special vehicle for transportation (packaged with wooden pallets and cartons). |
| Size | 10-inch TFT true color |
| Resolution | 800*480 |
| Backlight | LED |
| Power | 5W |
| Weight | 1kg |
| Language | Chinese/English (switchable at will) |
| Full-Screen Display and Operation | Instrument screen, light column graph, historical trend, data report, alarm information, data export, process flow, system management, etc. |
| Control Objects | Temperature, loading platform in/out and lifting |
| Temperature Control | Touch screen + high-precision integrated module |
| Start Heating | Touch operation |
| Pause Heating | Touch operation |
| Stop Heating | Touch operation |
| Temperature Curve Compilation | Touch operation, 30 segments per curve |
| Temperature Curve Storage Quantity | Unlimited (each curve can be named in Chinese/English) |
| Real-Time Status Display | Running curve name, running segment number, segment time, segment running time, digital temperature, real-time curve, power output percentage |
| Select Segment to Start (Cross-Segment Start) | Touch operation |
| Curve Range | Adjustable |
| Historical Curve (Graphic and Text) | Approximately 20 months of storage |
| Data Report (EXCEL) | Approximately 20 months of storage, multi-point simultaneous display (expandable by inserting a USB flash drive) |
| Interval for Recording Historical Curves and Reports (Storage) | Adjustable from 1 second to 3600 seconds, multi-point simultaneous display (expandable by inserting a USB flash drive) |
| Alarm Indication | Color change (red) |
| Alarm Information Language | Displayed in Chinese (alarm time and event described in Chinese) |
| Data Export Interface | USB (supports mouse) |
| Printer Interface | Parallel port |
| Touch Screen Protection | With password setting (others without password are prohibited from operating) |
| Communication Port | RS485 |
| Password | All operations on the touch screen can be password-protected to prevent leakage of parameters and processes, facilitating comprehensive management. |
